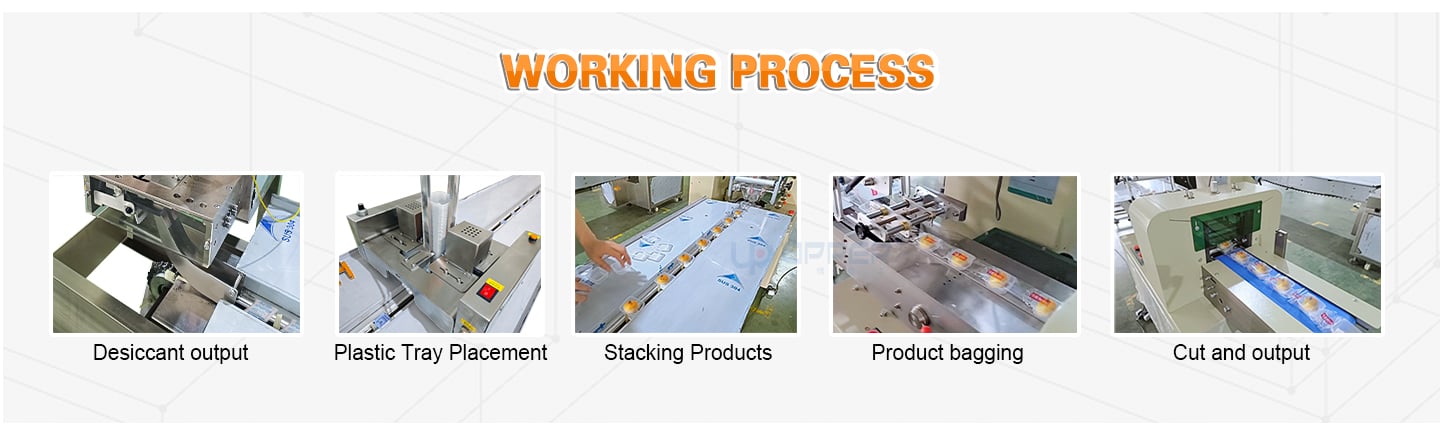

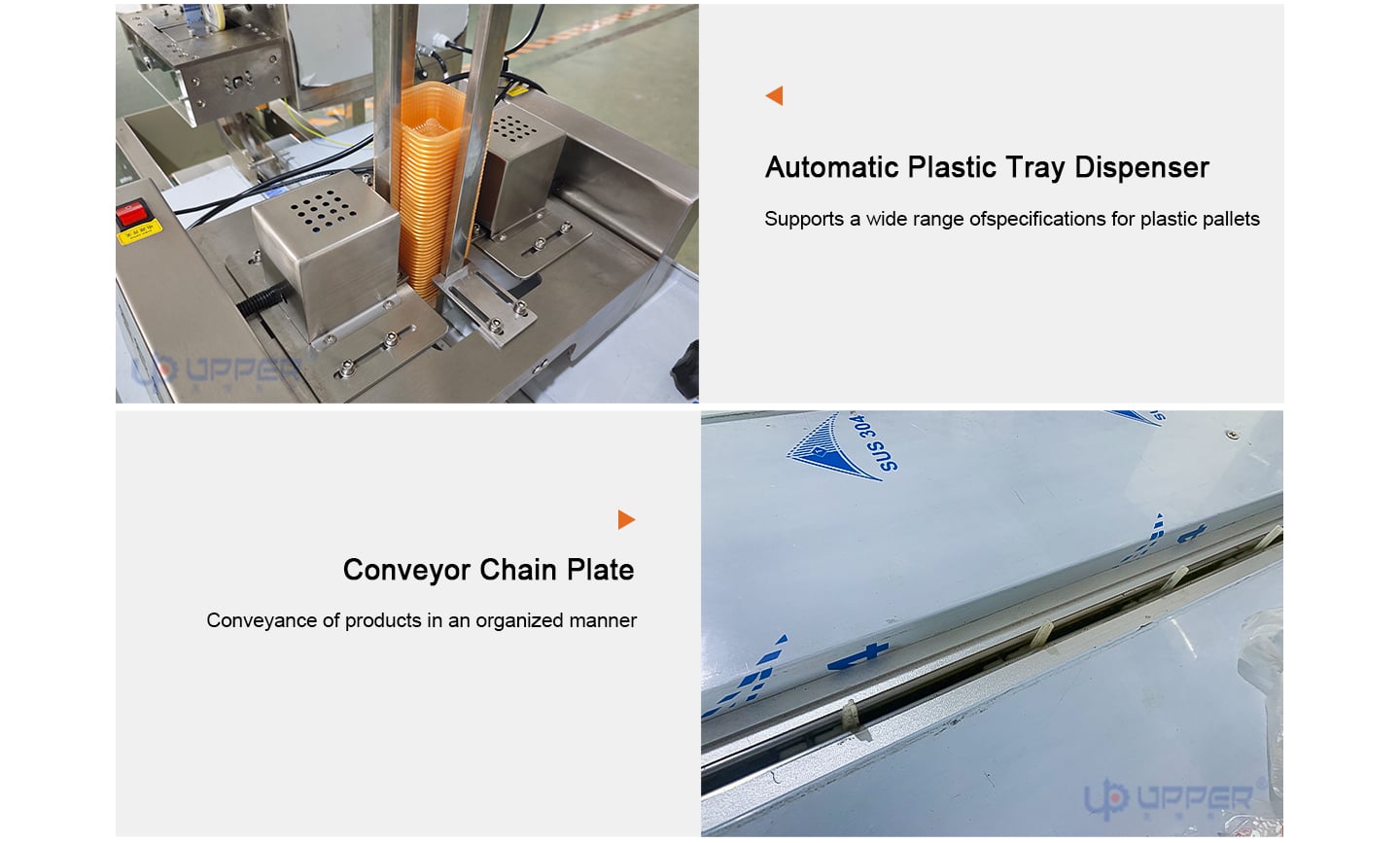

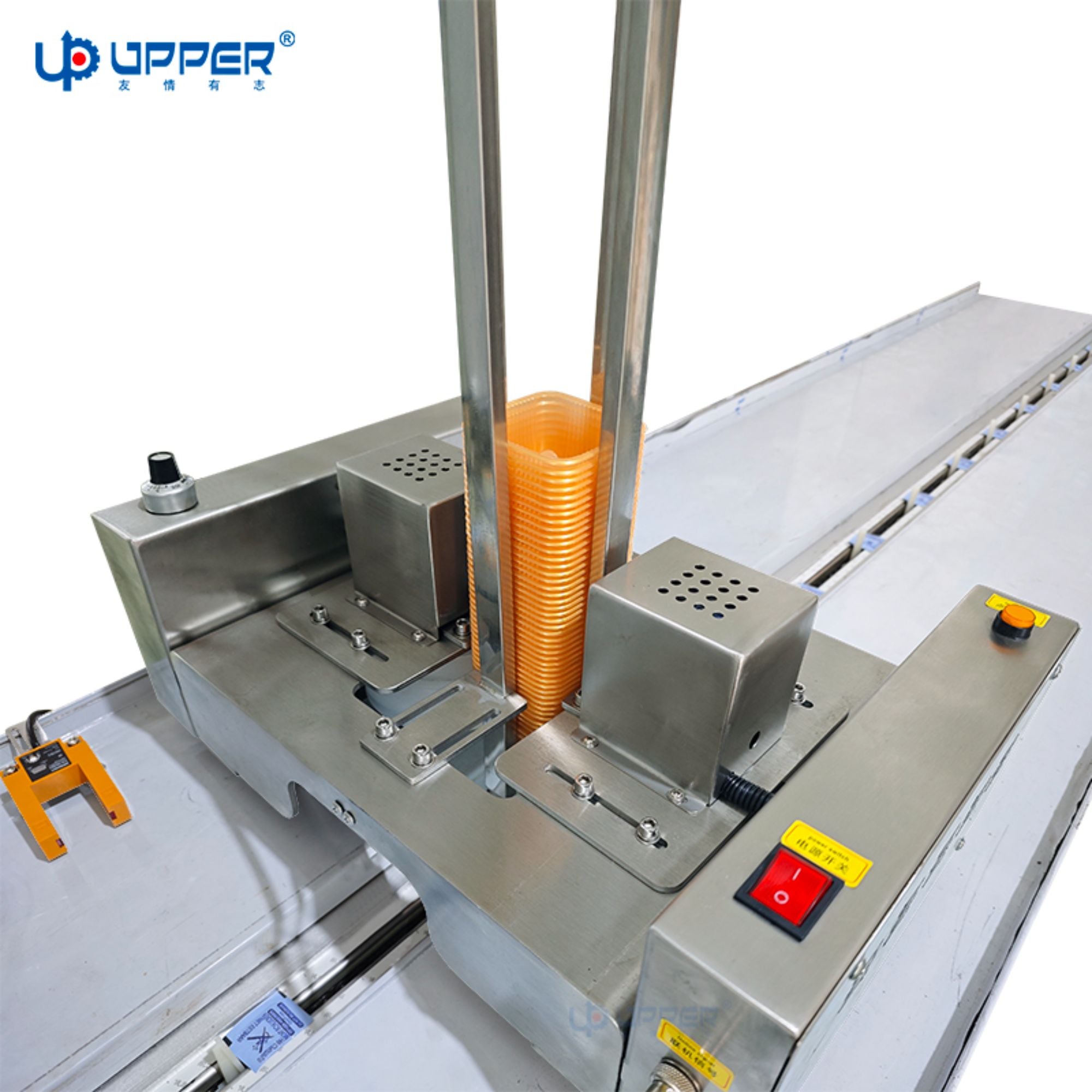

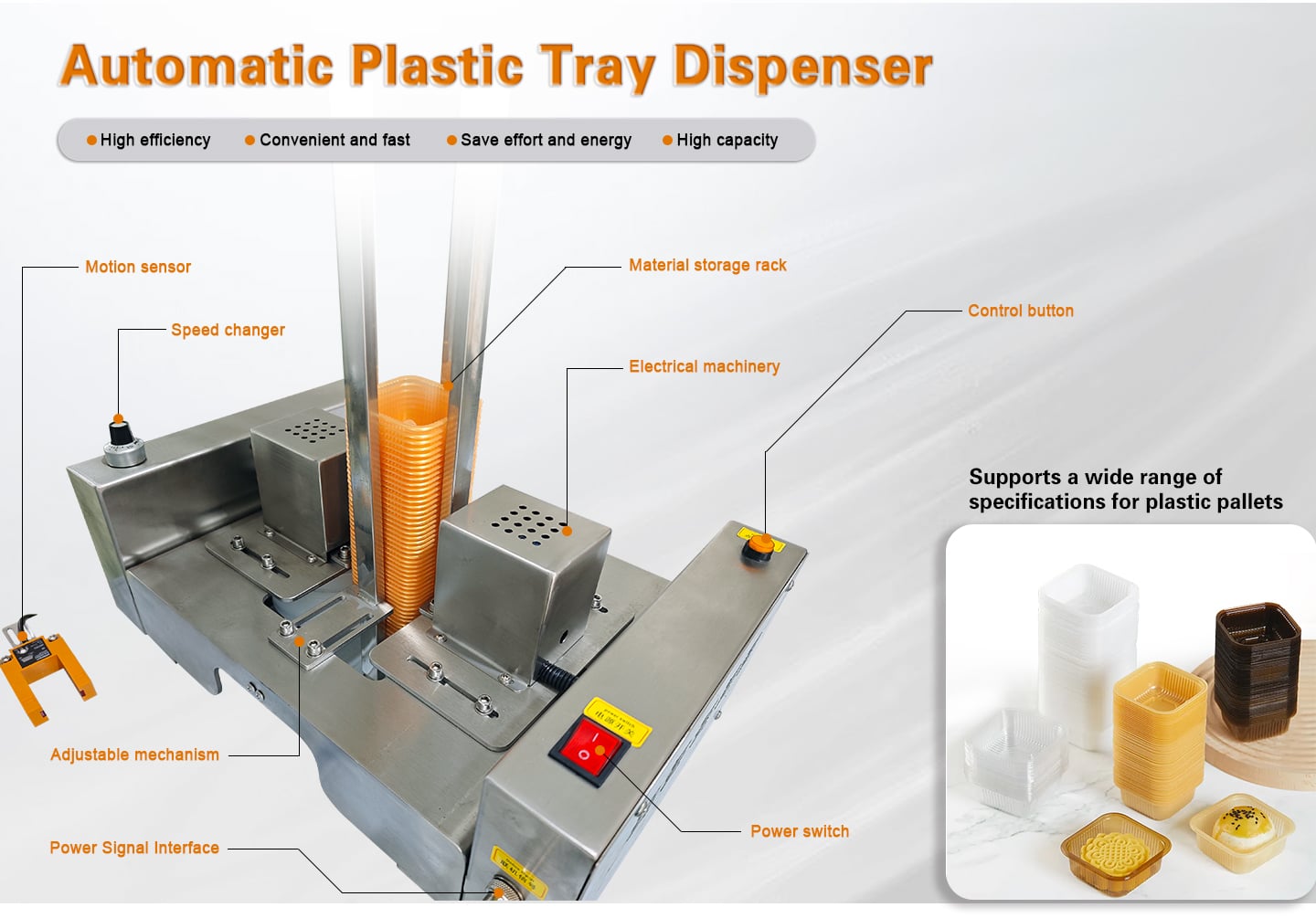

This is a packaging machine that stacks plastic trays and products on the way from the front end to the dryer.

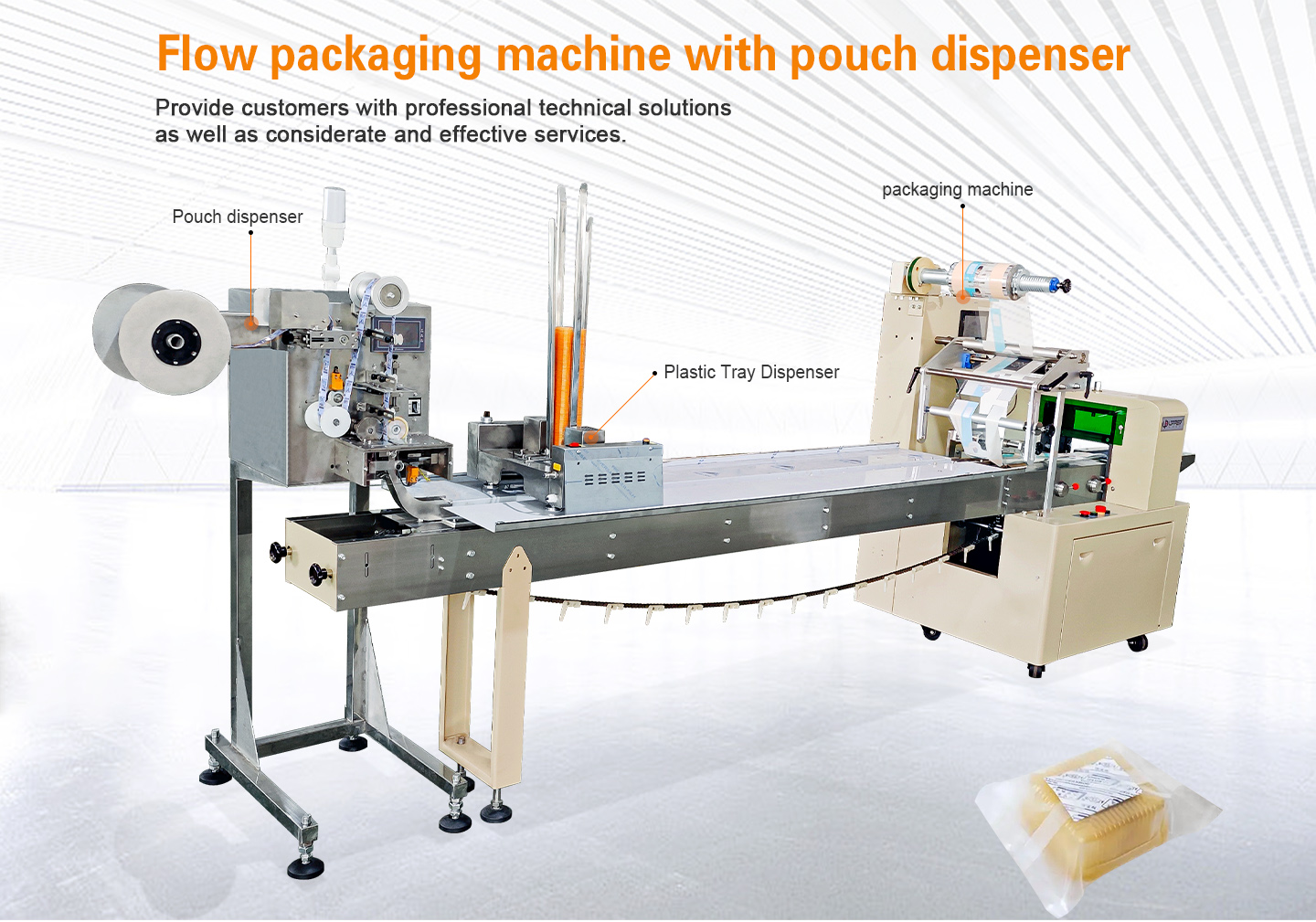

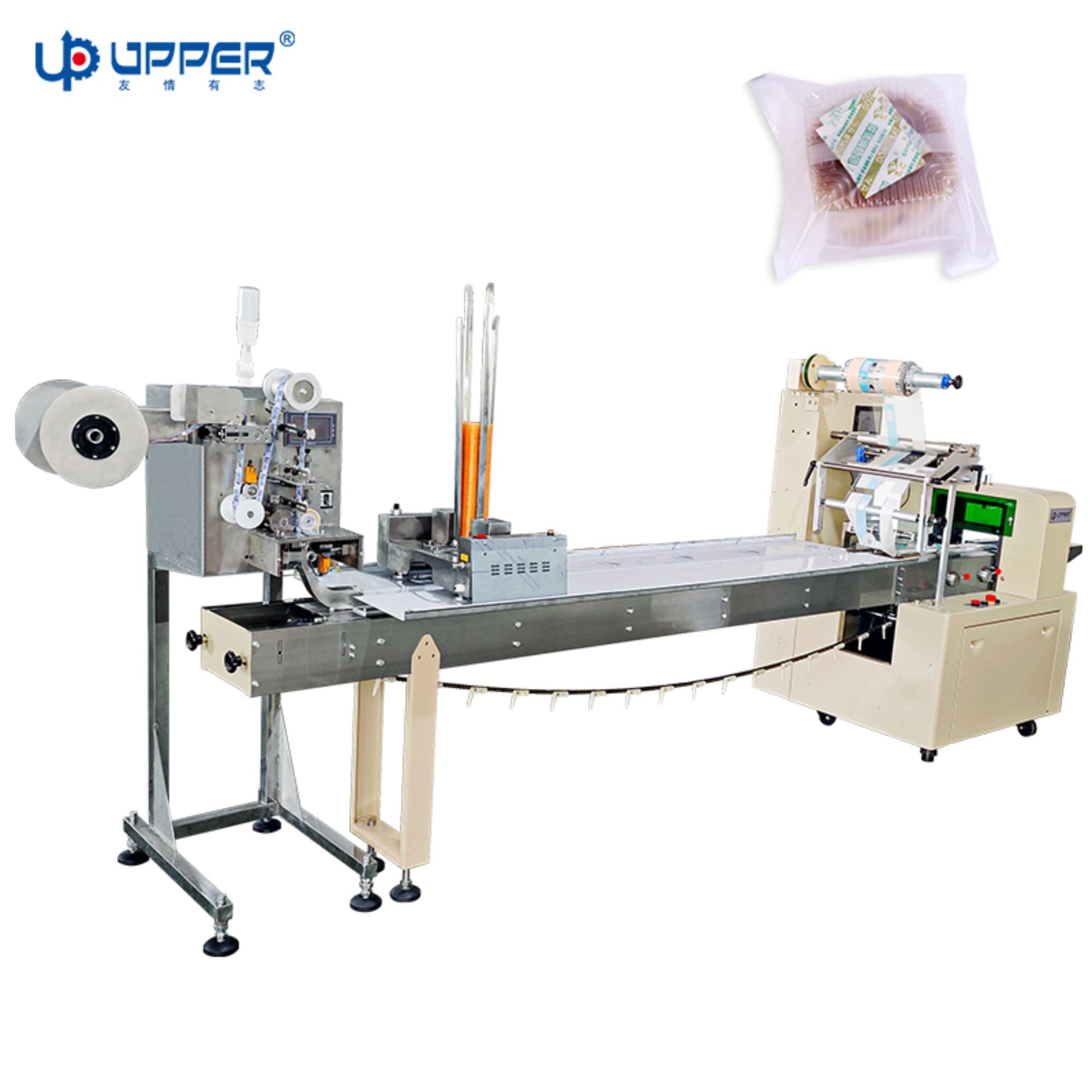

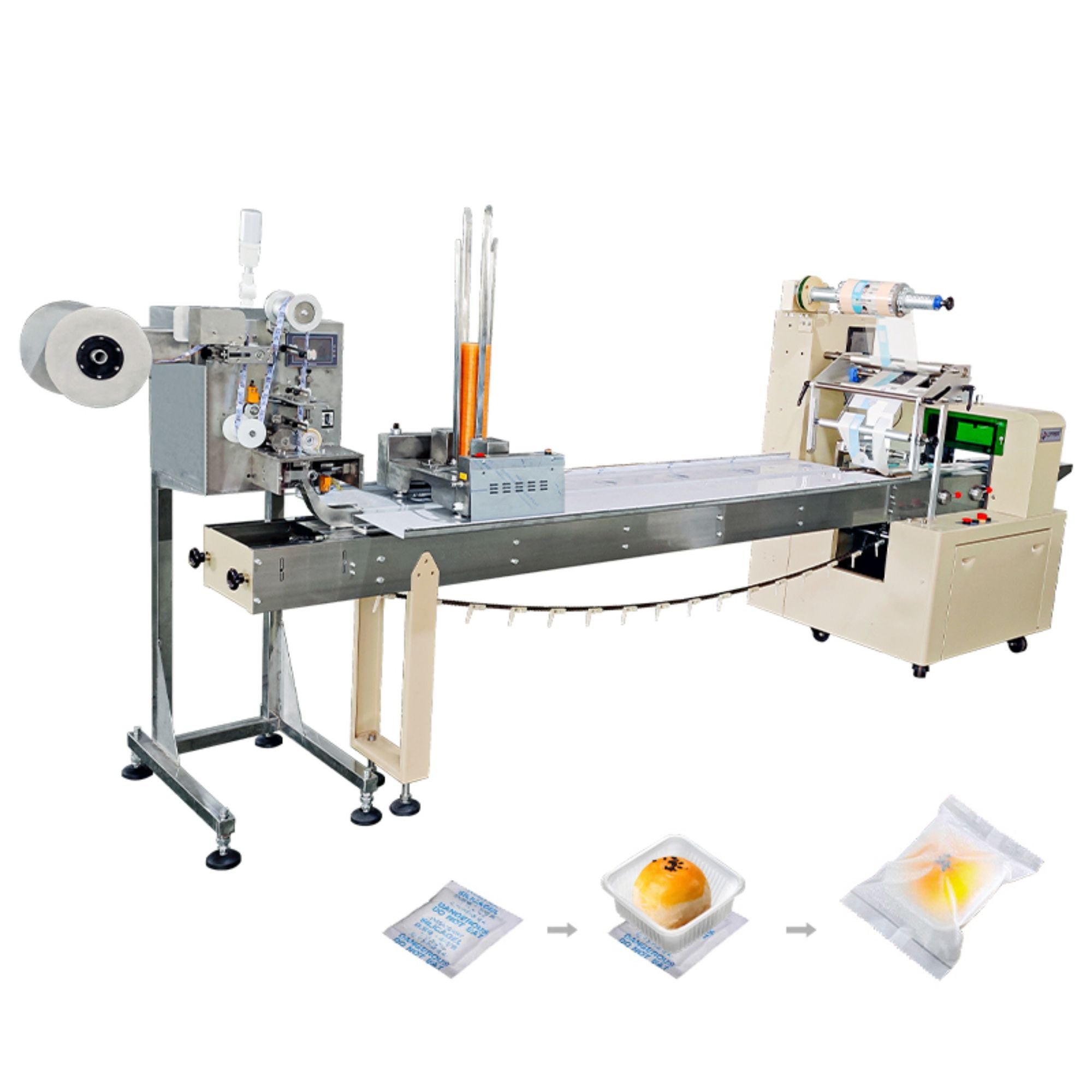

Fully automated turntable feeding and packing line
For rotary turntable make the products one pcs by one pcs comming, the sensor detect to control the speed and then go into the packing machine to packing in the pillow bag.
This packing line suitable for packing the products like: sesame energy ball bites nessary device protein date ball /chocolate ball ,the products in round products .
Overview
1.This product adopts multi-stage frequency conversion speed control, servo drive control, simple and convenient operation, stable operation, high control precision and low energy consumption.

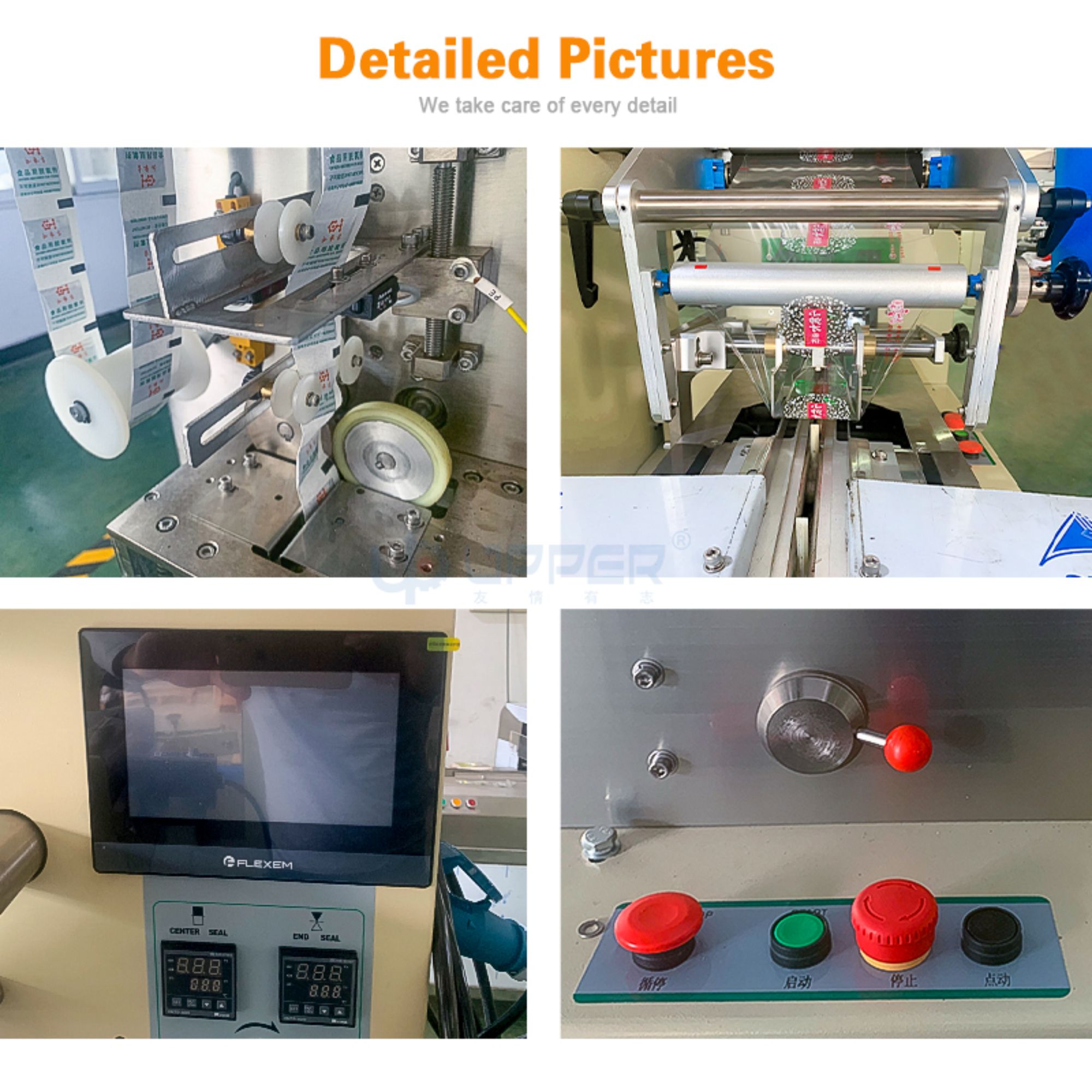

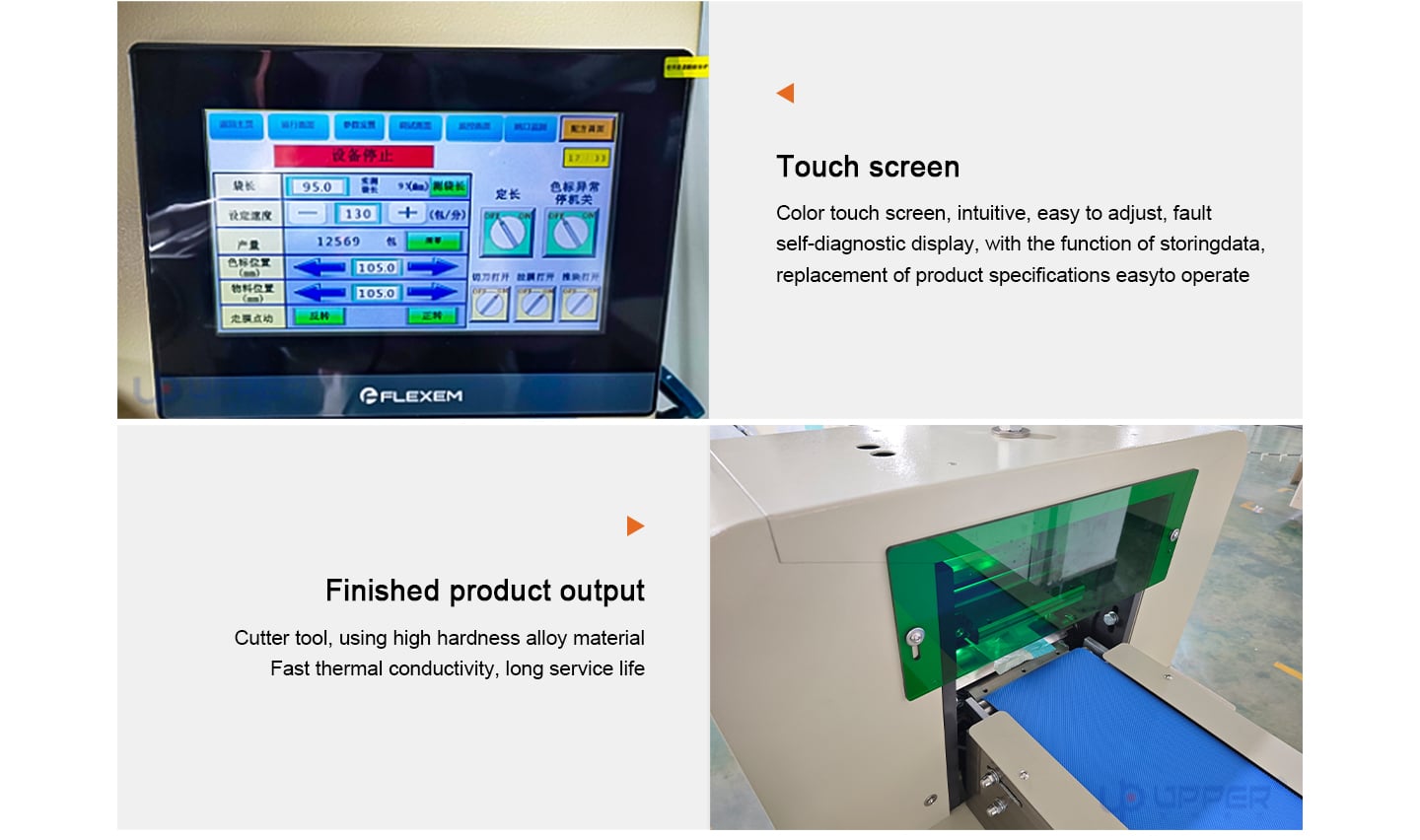

2.Color touch screen, intuitive, easy to adjust, fault self-diagnostic display, with the function of storing data, easy to operate to change product specifications.
3.High precision and high sensitivity SICK electric eye tracking system, precise material position control.
4.This product adopts stainless steel structure, humanized design, installation, disassembly, maintenance, simple and fast.

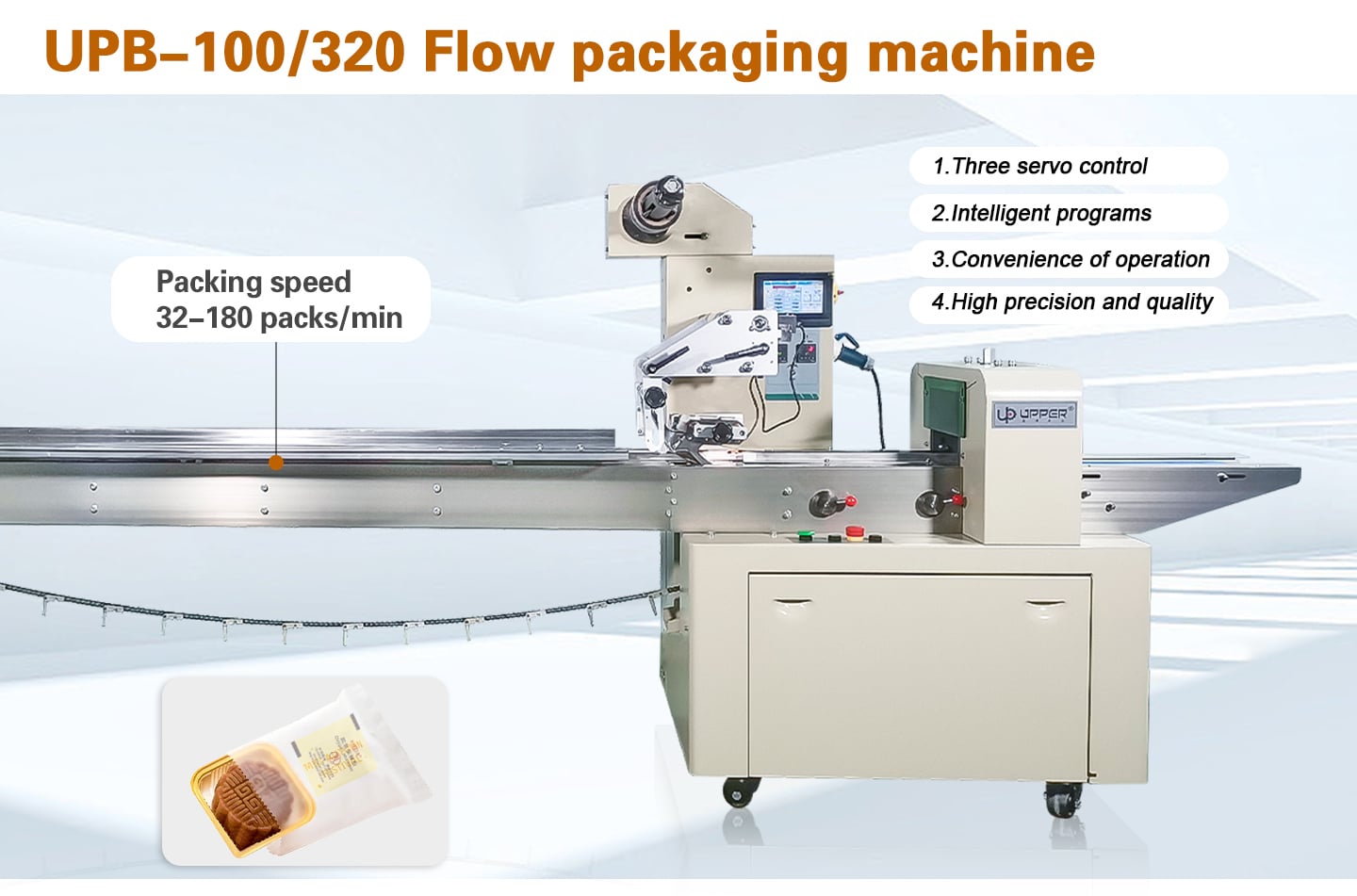

| Model | UPB-100 | UPB-320 | UPB-450 | UPB-600 |
| Product name | Horizontal automatic packaging machine | Horizontal automatic packaging machine | Horizontal automatic packaging machine | High speed servo Horizontal automatic packaging machine |
| Packing size | L 60-160mm, W 35-100mm, H 5-35mm |
L 110-300mm, W 35-160mm, H 5-50mm |
L 120-500mm, W 35-200mm, H 5-70mm |
L 90-260mm, W 35-145mm, H 5-40mm |
| Packing capacity | 35-225 bags/min | 32-180 bags/min | 32-160 bags/min | 50-200 bags/min with nitrogen; 30-350bags/min W/Onitrogen |
| Film width (mm) | 90-220 | 90-350 | 90-450 | 90-350 |
| Packing material | OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
| Power supply | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ |
| Power | 3.2KW | 3.2KW | 3.2KW | 3.2 Kw |
| Net weight (kg) | 450 | 500 | 600 | 1000 |
| Dimension (mm) | 4000*920*1500 | 4000*950*1600 | 4000*950*1600 | 4000*950*1600 |

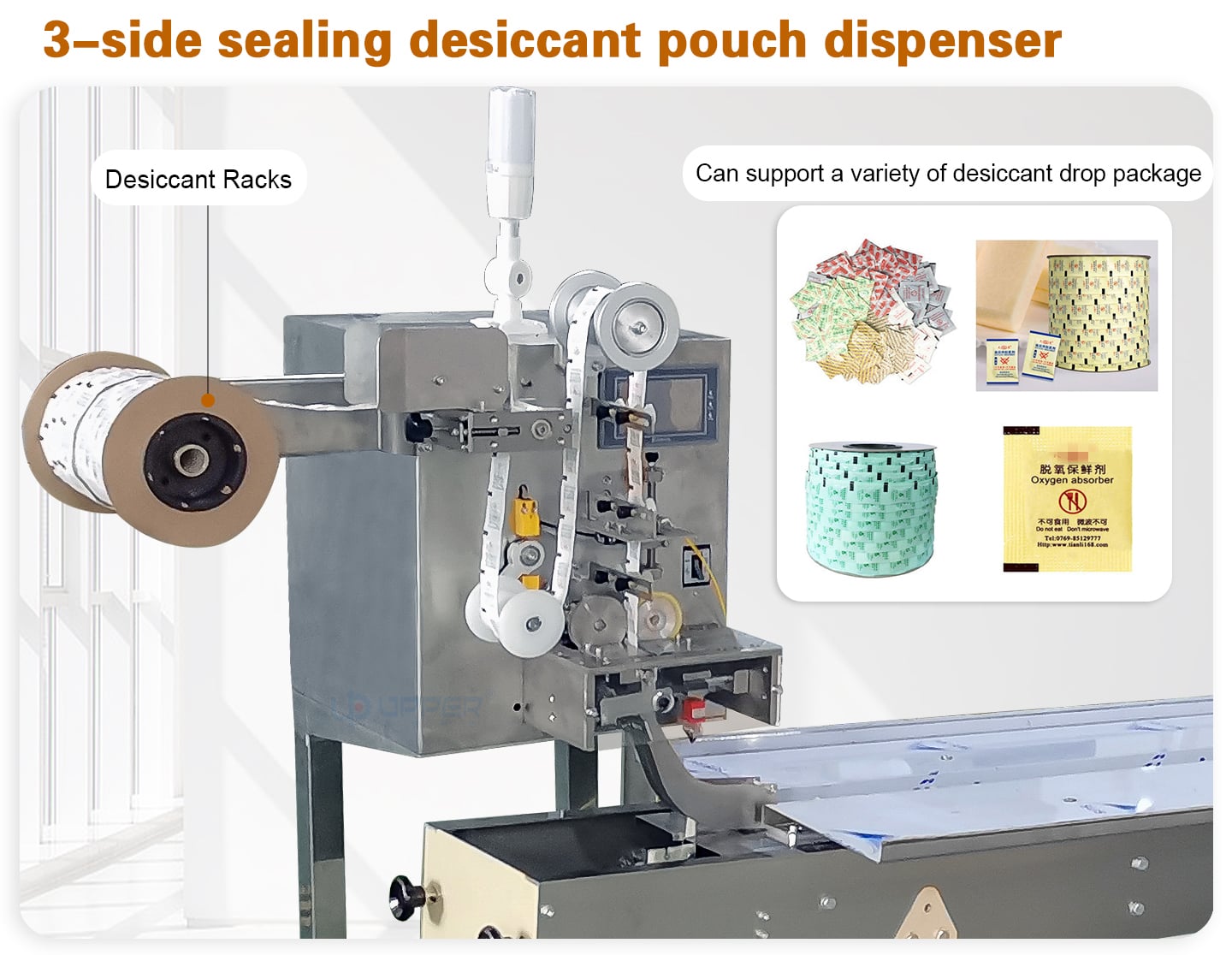

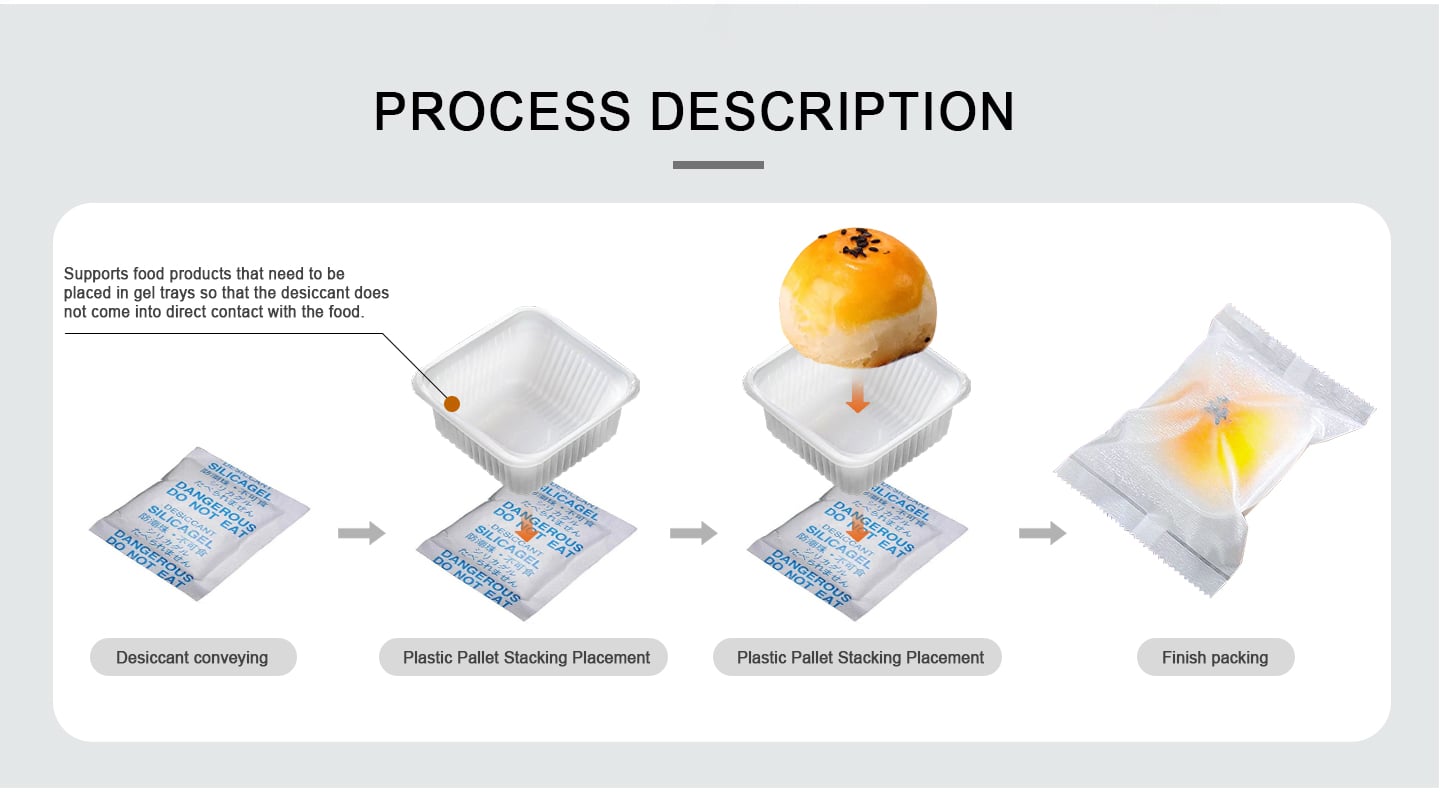

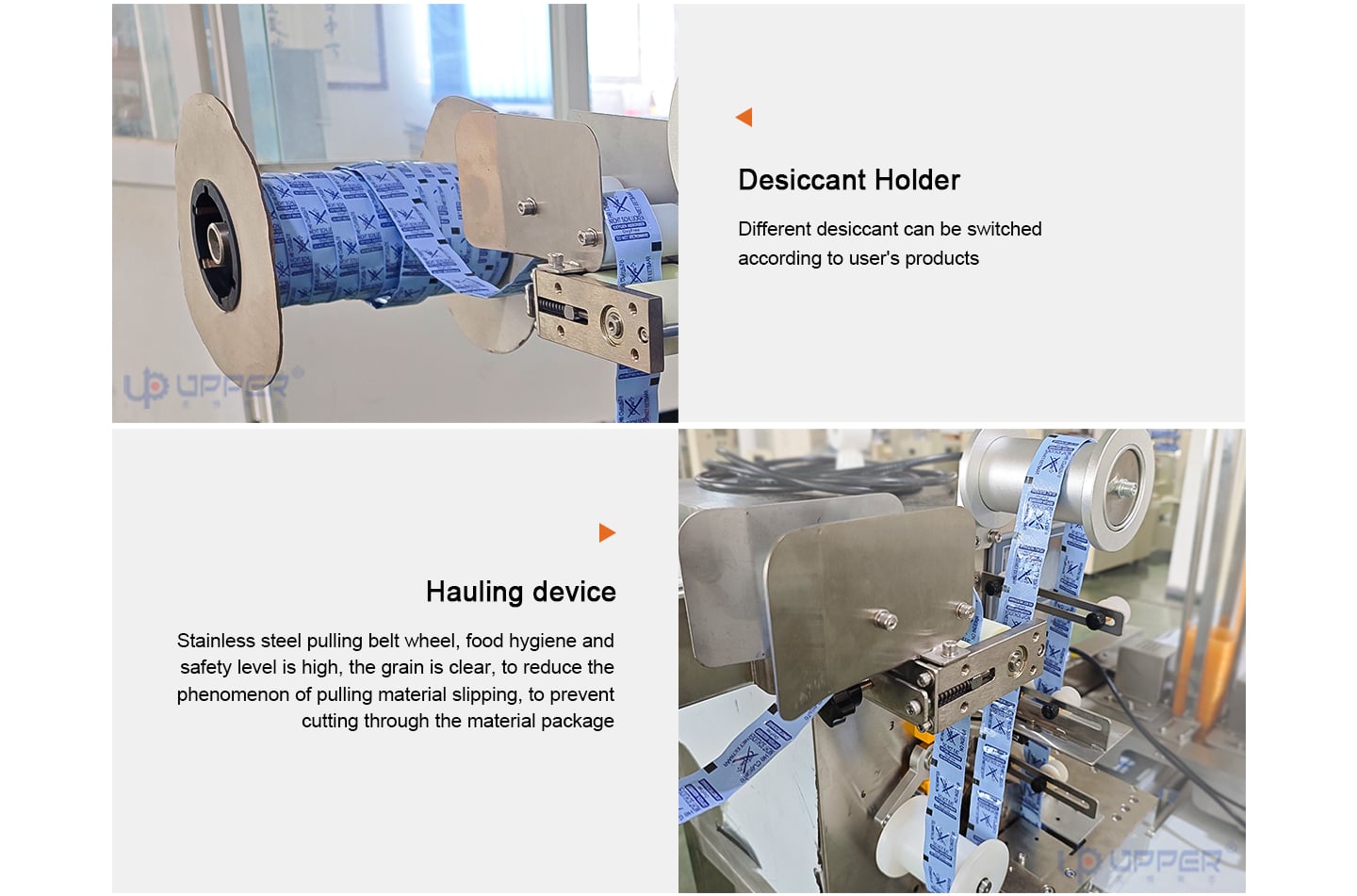

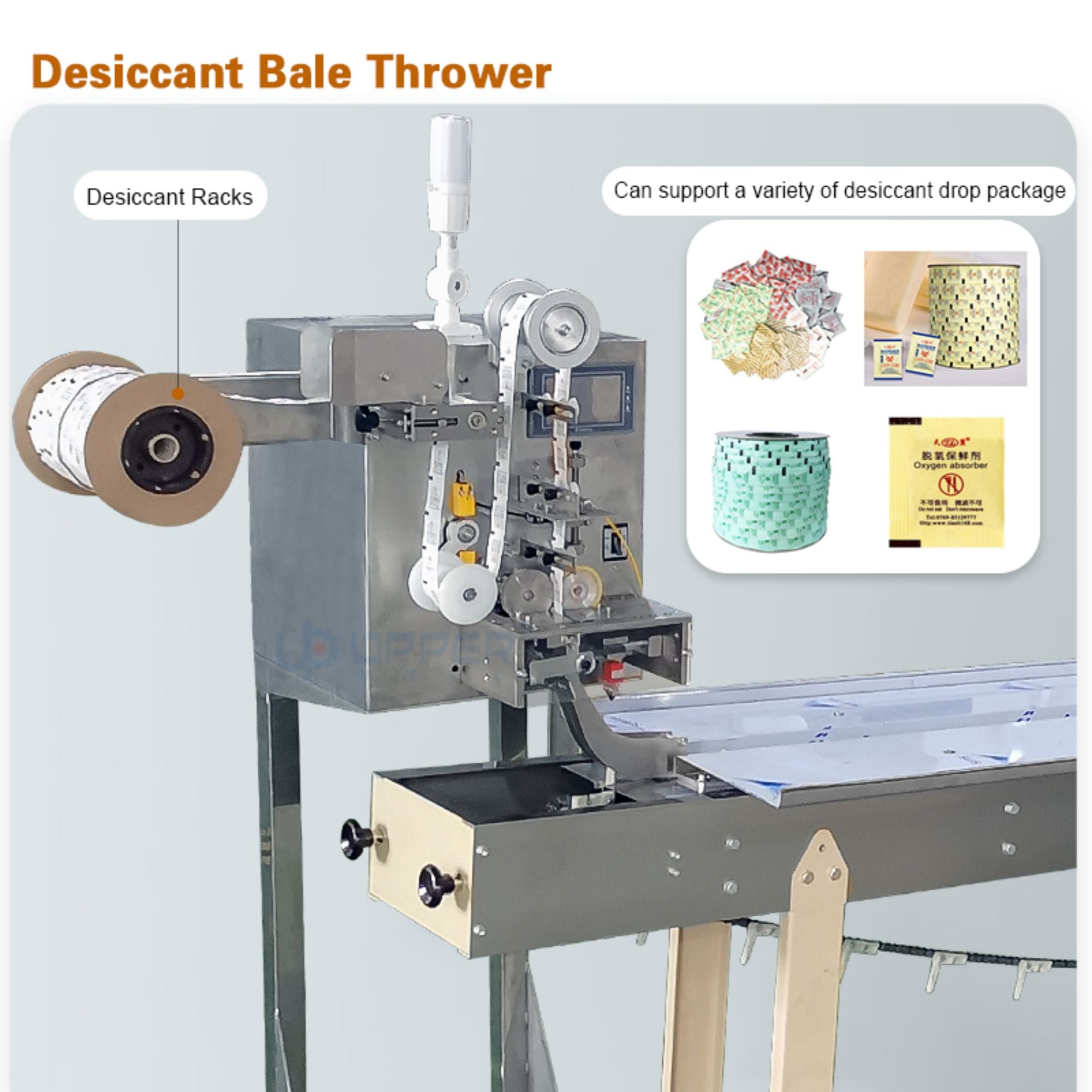

This equipment is suitable for bread/egg custard/moon cake/biscuits/cupcakes/mung bean cake snacks
and other foodstuffs packed with desiccant in the food gap.
High precision and high sensitivity SlCK electric eye trackingsystem, precise material position control.This product adopts stainless steel structure, humanized design,installation,disassembly,maintenance, simpleand fast.
Foshan UPPER machinery equipment co.,td is an innovative automated packaging equipment manufacturelintegrating R&D, design, manufacturing, sales and after-sales. Since its establishment more than ten yearsago, the company has attracted a group of more than 80 professionals who are persistently pursuing themechanical industry. The number of talents who have grown up with the company has reached 12, and theyhave designed and manufactured automatic packaging equipment with leading technology in China andoversea.
The company specializes in manufacturing: automatic product flow packaging line, pillow packaging machine.food packaging machine, daily chemical products packaging machine, hardware accessories packacinamachine, pouch dispenser, secondary packaging machine, automatic carton packing filing machine, bagsorting machine, customized counting colection machine, customized processing line packaging equipment
Foshan Upper Machinery Equipment Co., Ltd. has professional technical personnel, engineers, sales andafter-sales service personnel, forming a high-gquality, young and innovative team. Always adhere to the tenet of'scientific and technological innovation, quality first, steady development, sincerity and trustworthiness", andprovide customers with high-quality products and services.
Kindly Reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
Our friendly team would love to hear from you!
