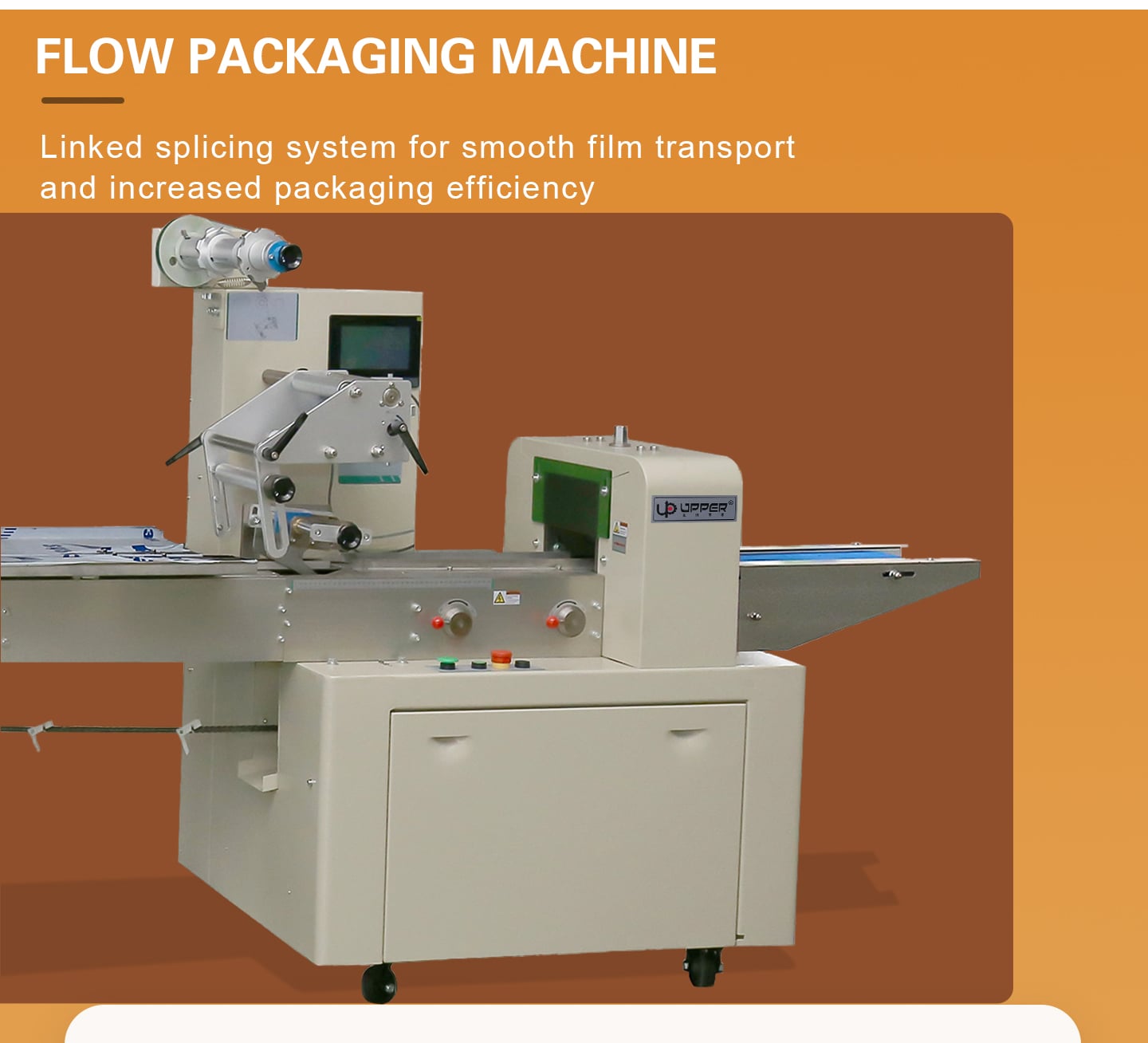

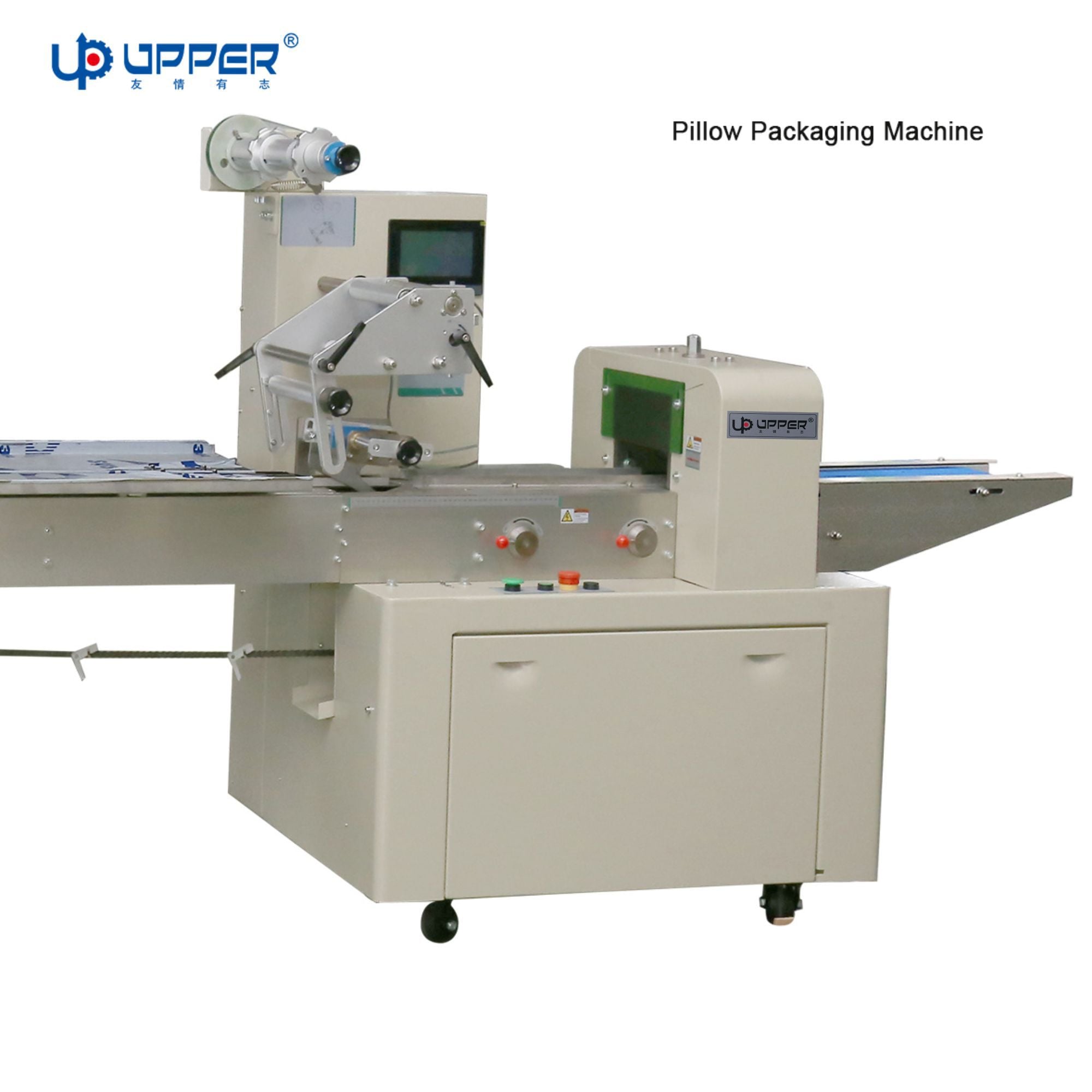

The horizontal flow packaging machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.
Product Description
Overview
1.This product adopts multi-stage frequency conversion speed control, servo drive control, simple and convenient operation, stable operation, high control precision and low energy consumption.
2.Color touch screen, intuitive, easy to adjust, fault self-diagnostic display, with the function of storing data, easy to operate to change product specifications.
3.High precision and high sensitivity SICK electric eye tracking system, precise material position control.
4.This product adopts stainless steel structure, humanized design, installation, disassembly, maintenance, simple and fast.
| Model | UPB-100 | UPB-320 | UPB-450 | UPB-600 |
| Product name | Horizontal automatic packaging machine | Horizontal automatic packaging machine | Horizontal automatic packaging machine | High speed servo Horizontal automatic packaging machine |
| Packing size | L 60-160mm, W 35-100mm, H 5-35mm |
L 110-300mm, W 35-160mm, H 5-50mm |
L 120-500mm, W 35-200mm, H 5-70mm |
L 90-260mm, W 35-145mm, H 5-40mm |
| Packing capacity | 35-225 bags/min | 32-180 bags/min | 32-160 bags/min | 50-200 bags/min with nitrogen; 30-350bags/min W/Onitrogen |
| Film width (mm) | 90-220 | 90-350 | 90-450 | 90-350 |
| Packing material | OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
OPP/PE; OPP/CPP laminated film |
| Power supply | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ | 220V 50HZ/380V 50HZ |
| Power | 3.2KW | 3.2KW | 3.2KW | 3.2 Kw |
| Net weight (kg) | 450 | 500 | 600 | 1000 |
| Dimension (mm) | 4000*920*1500 | 4000*950*1600 | 4000*950*1600 | 4000*950*1600 |

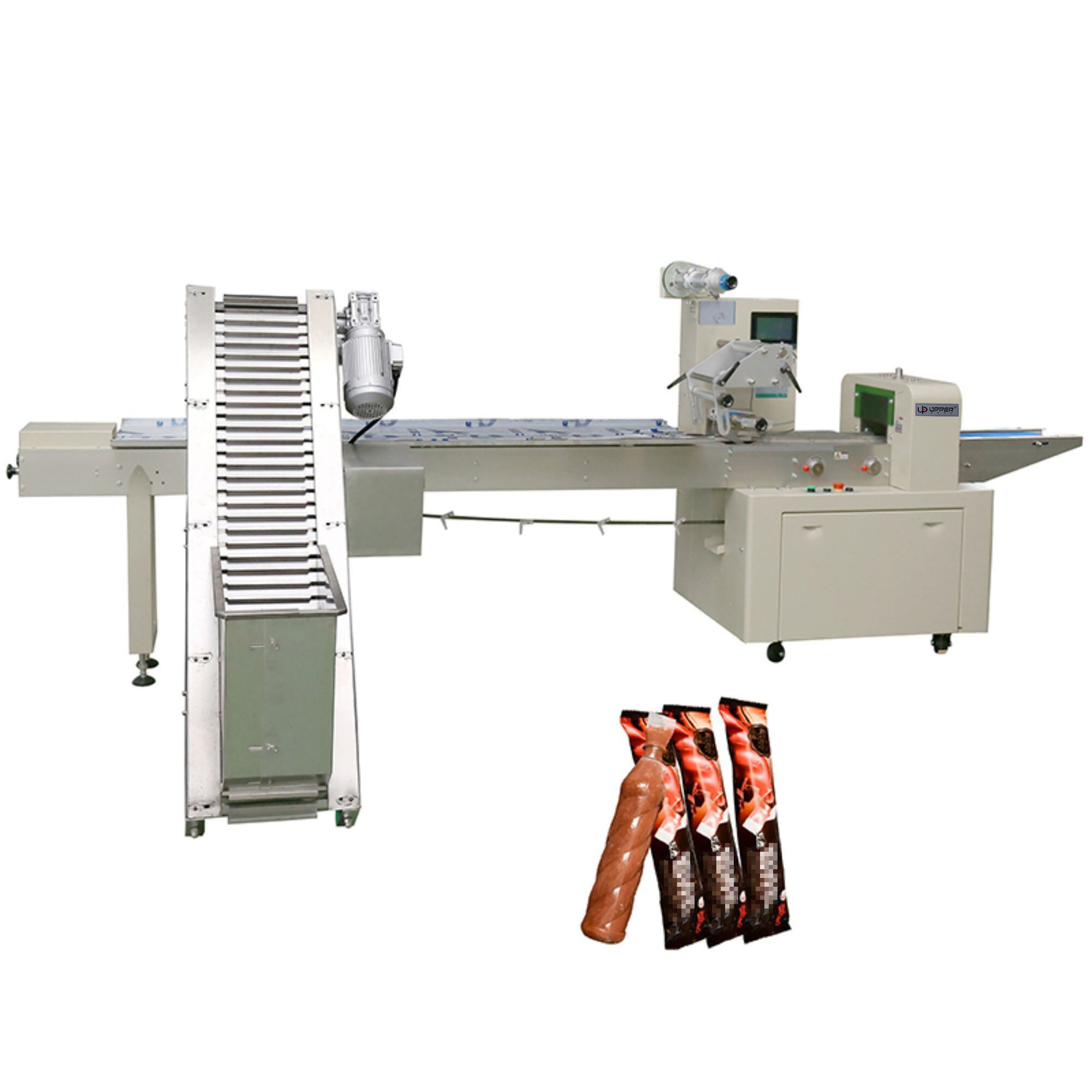

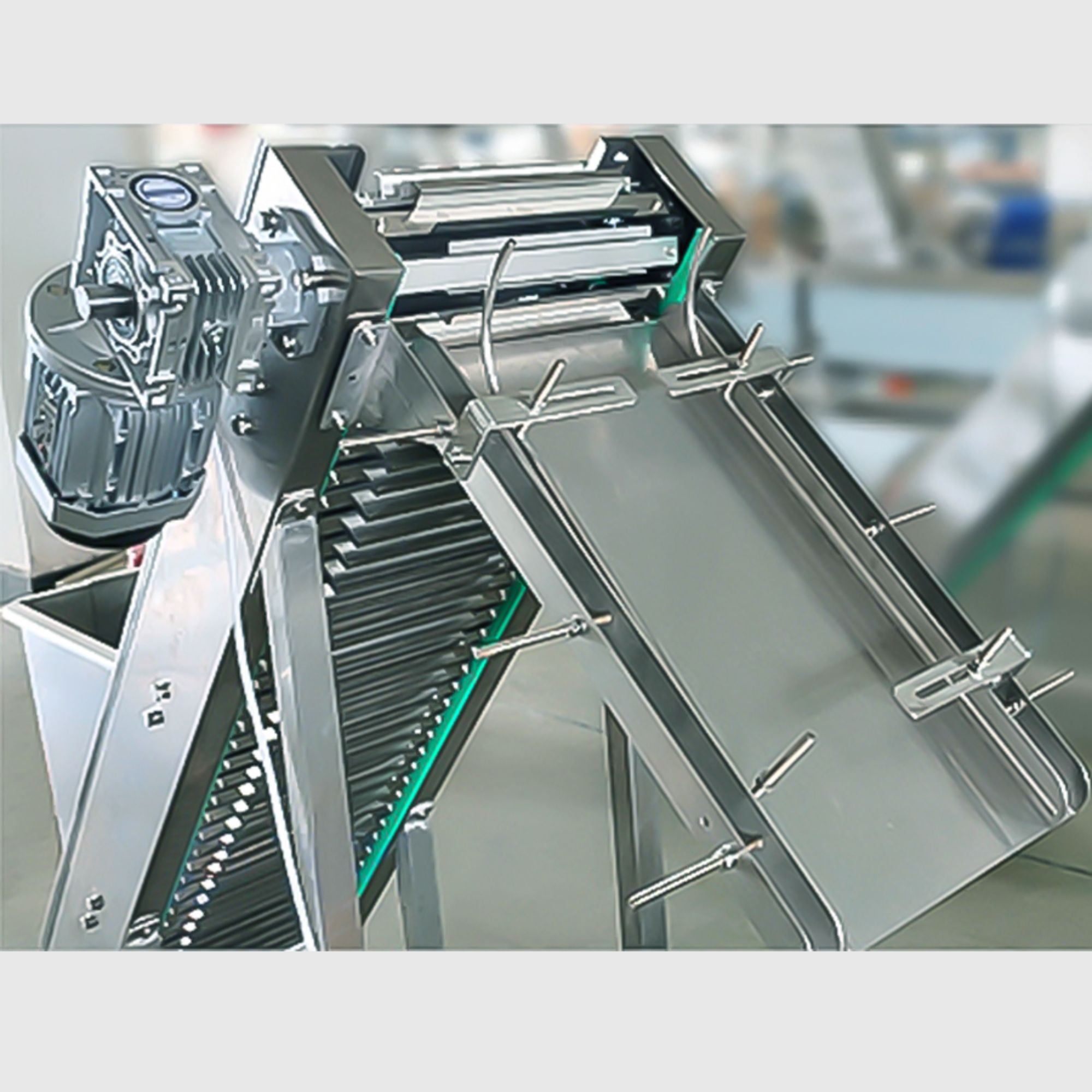

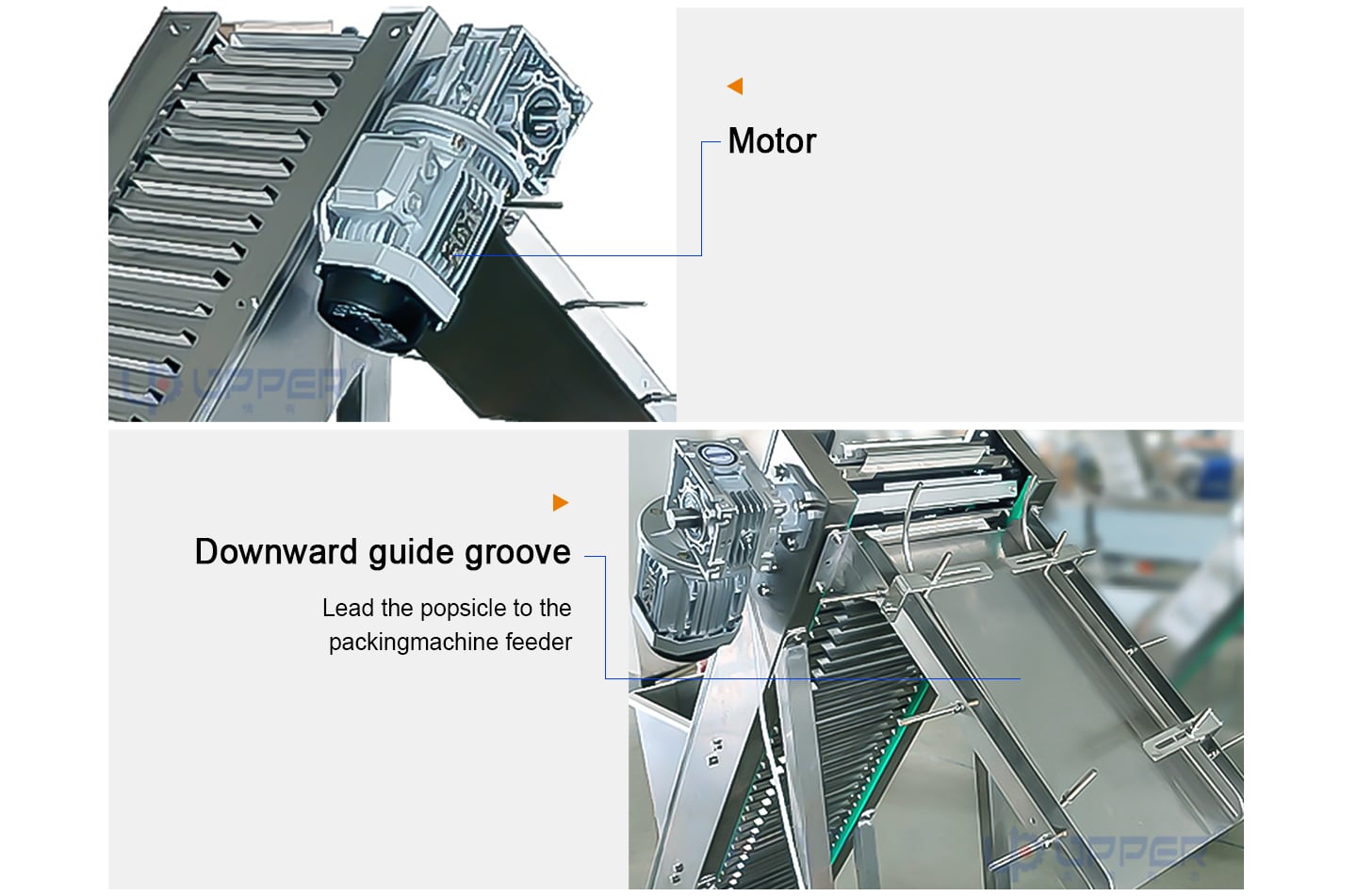

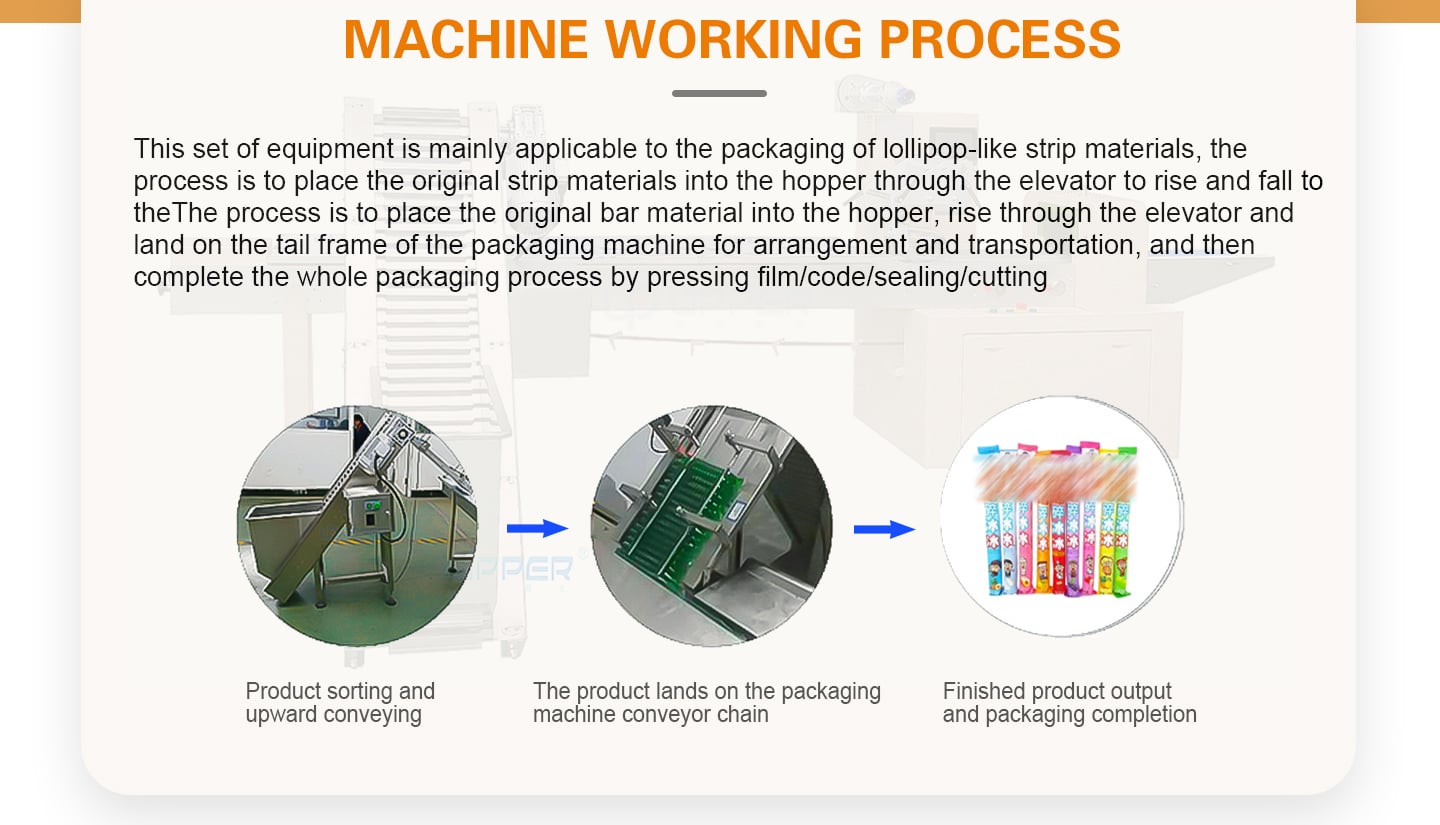

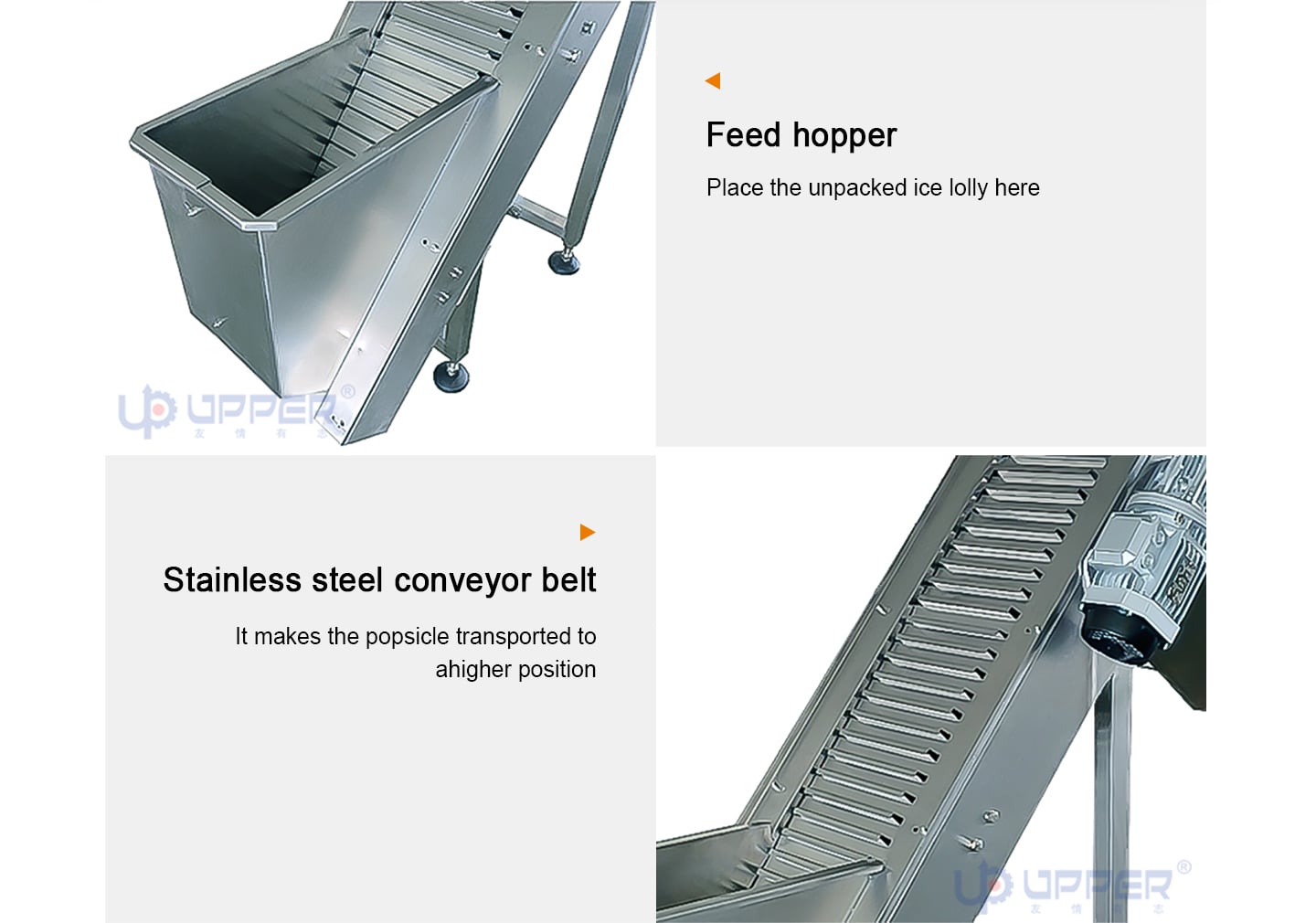

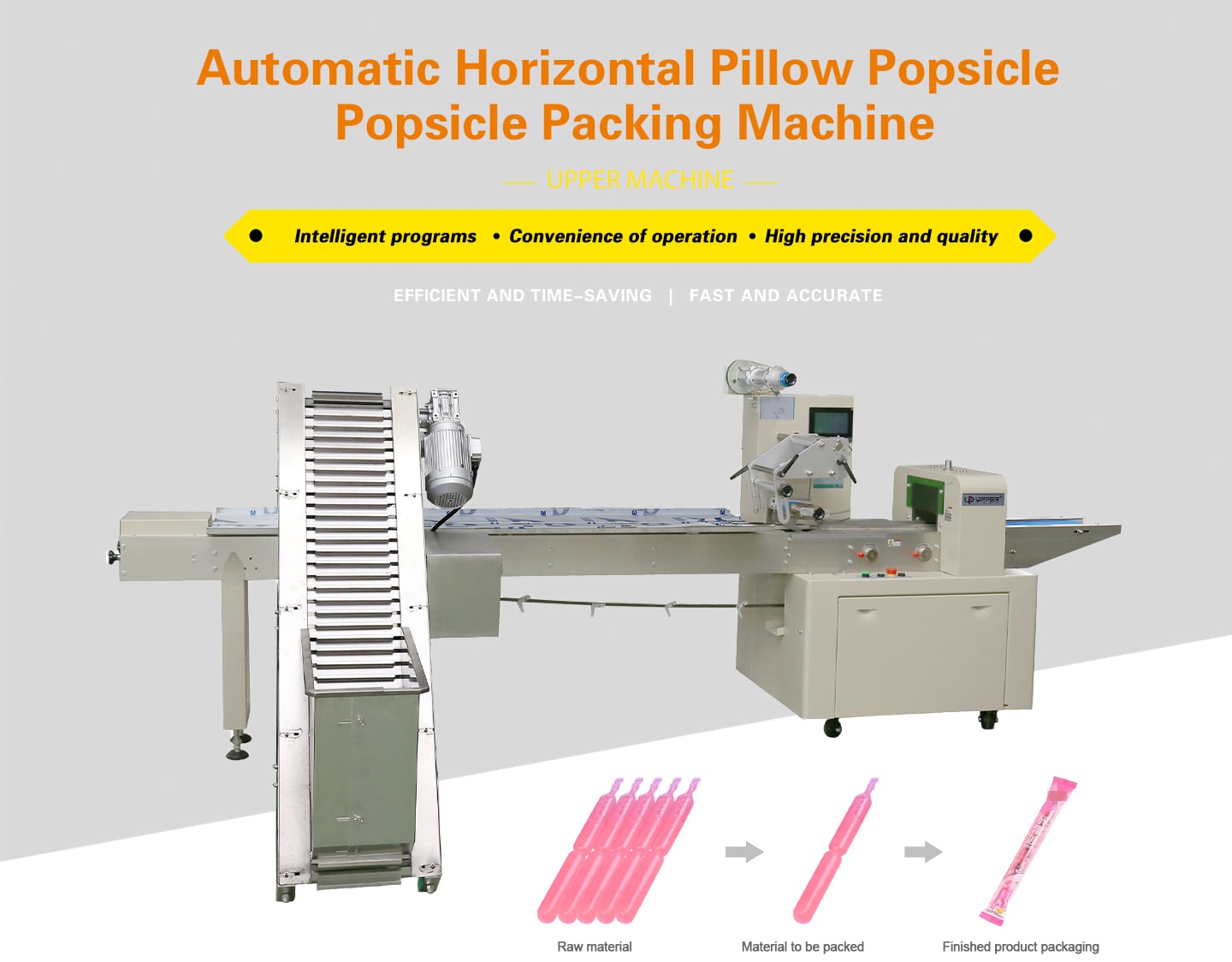

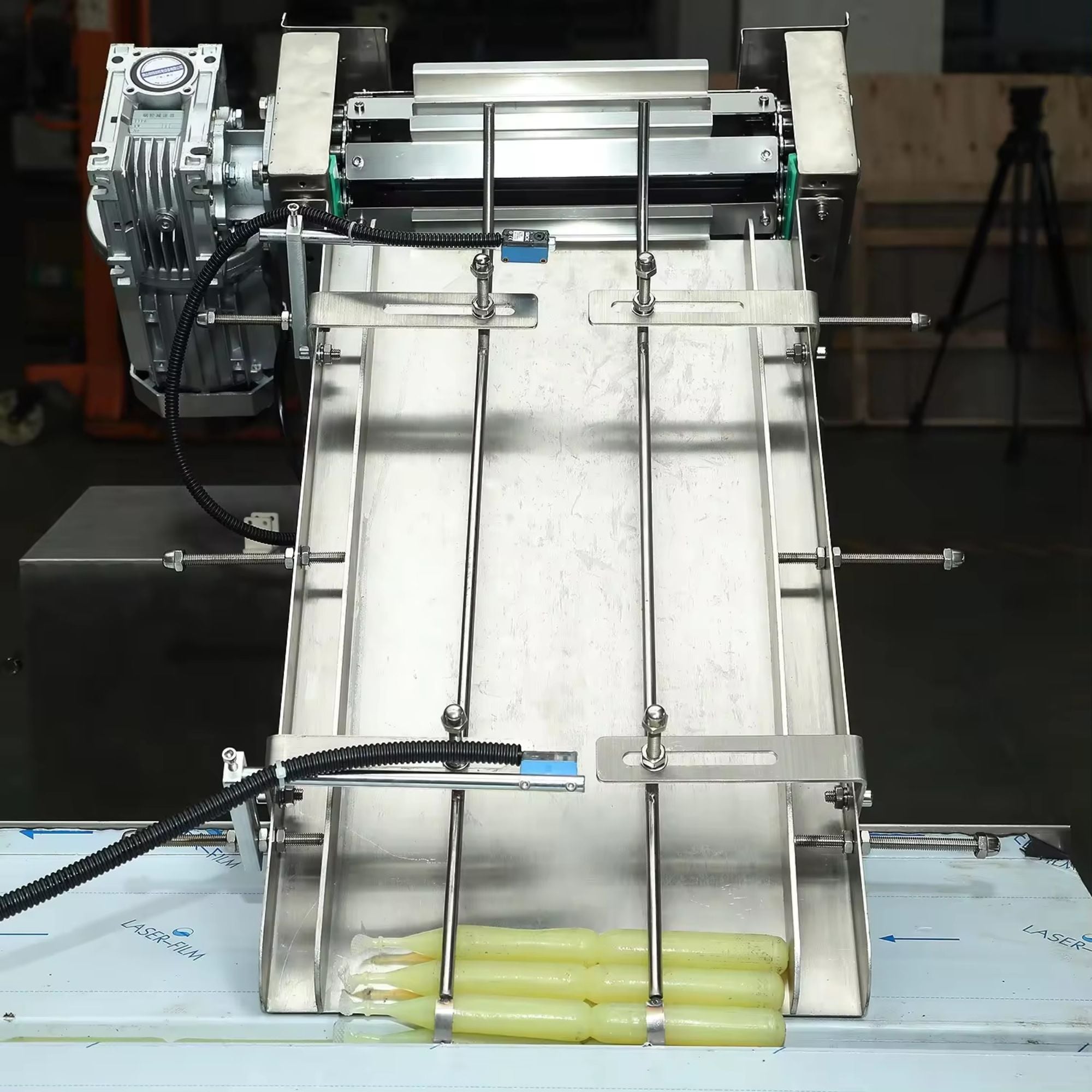

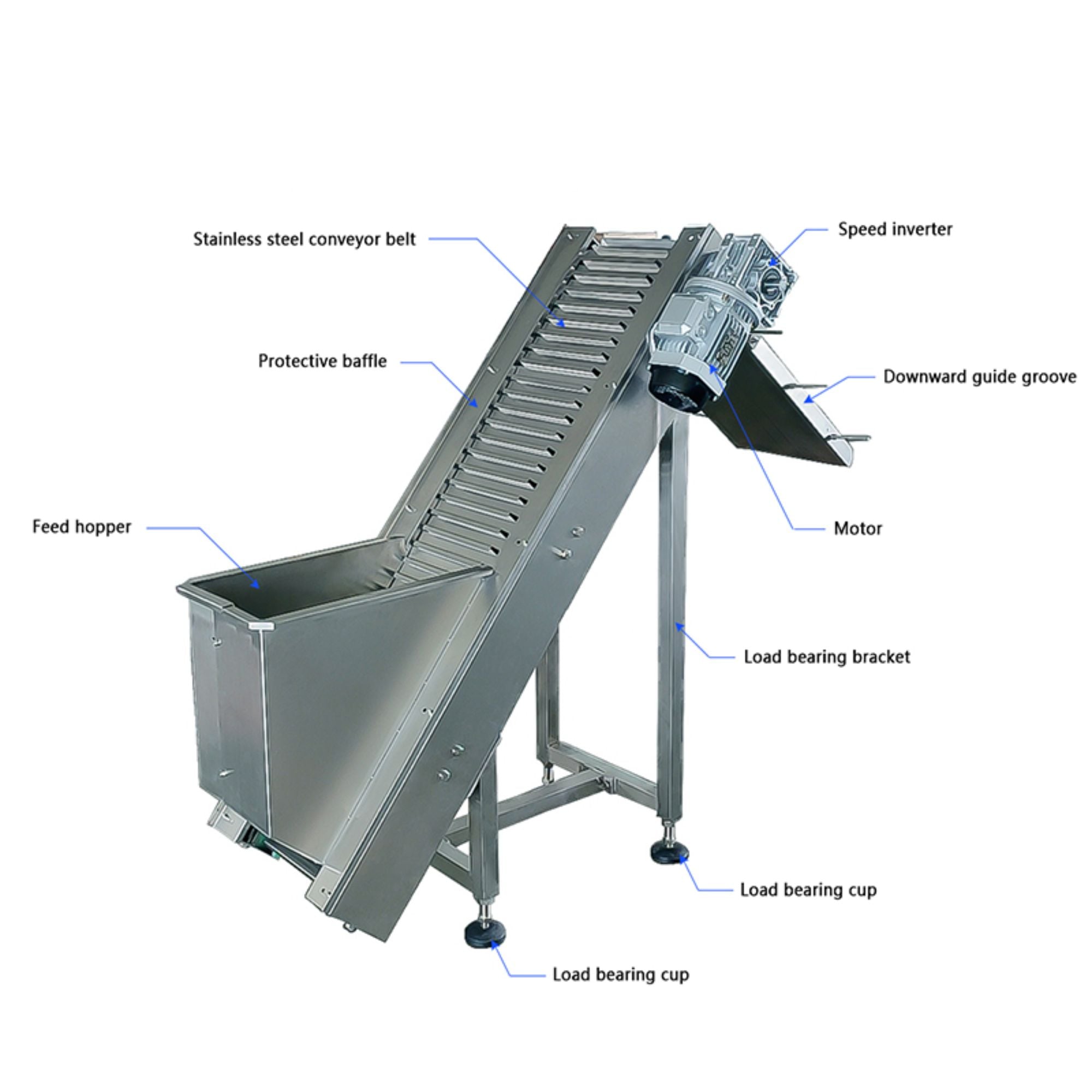

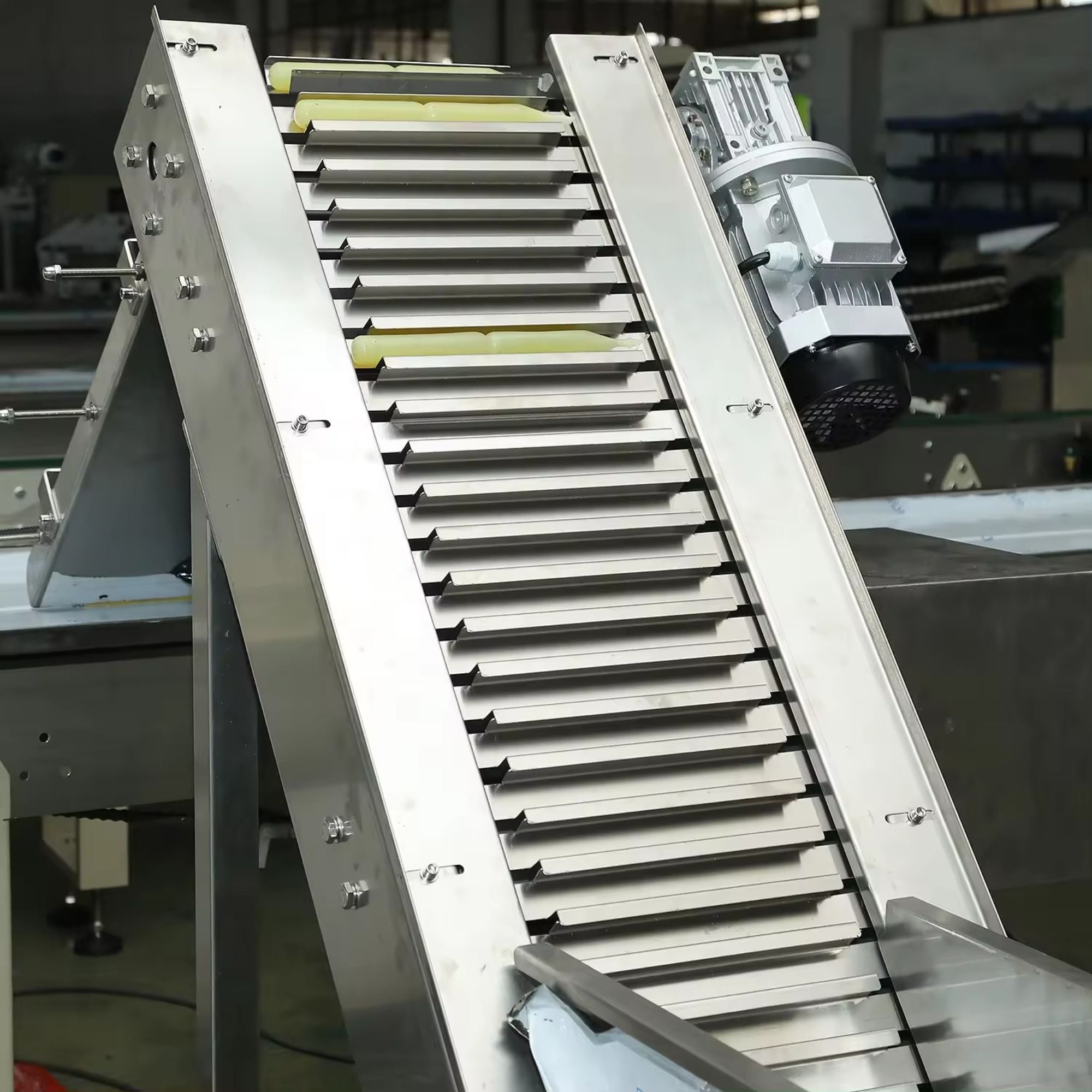

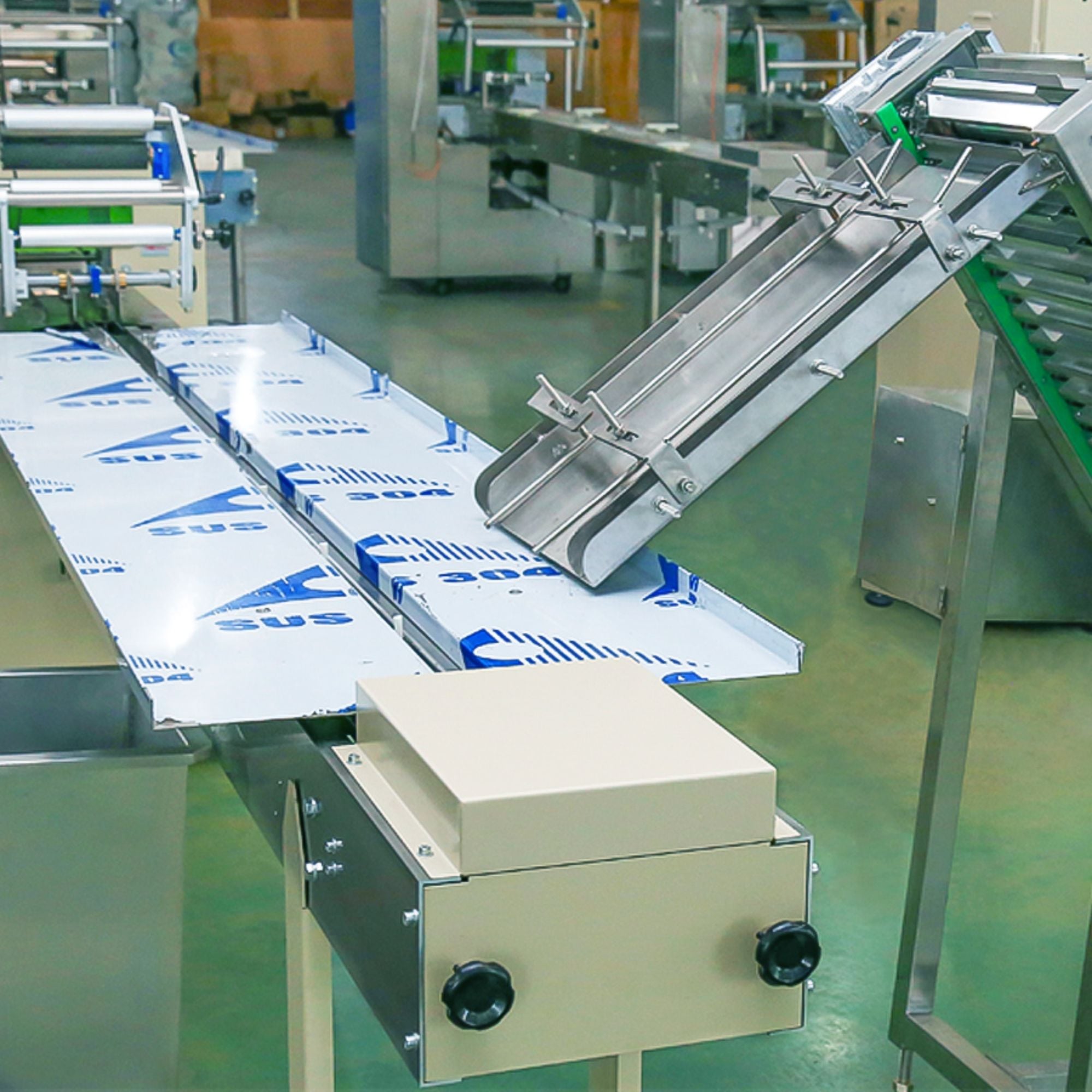

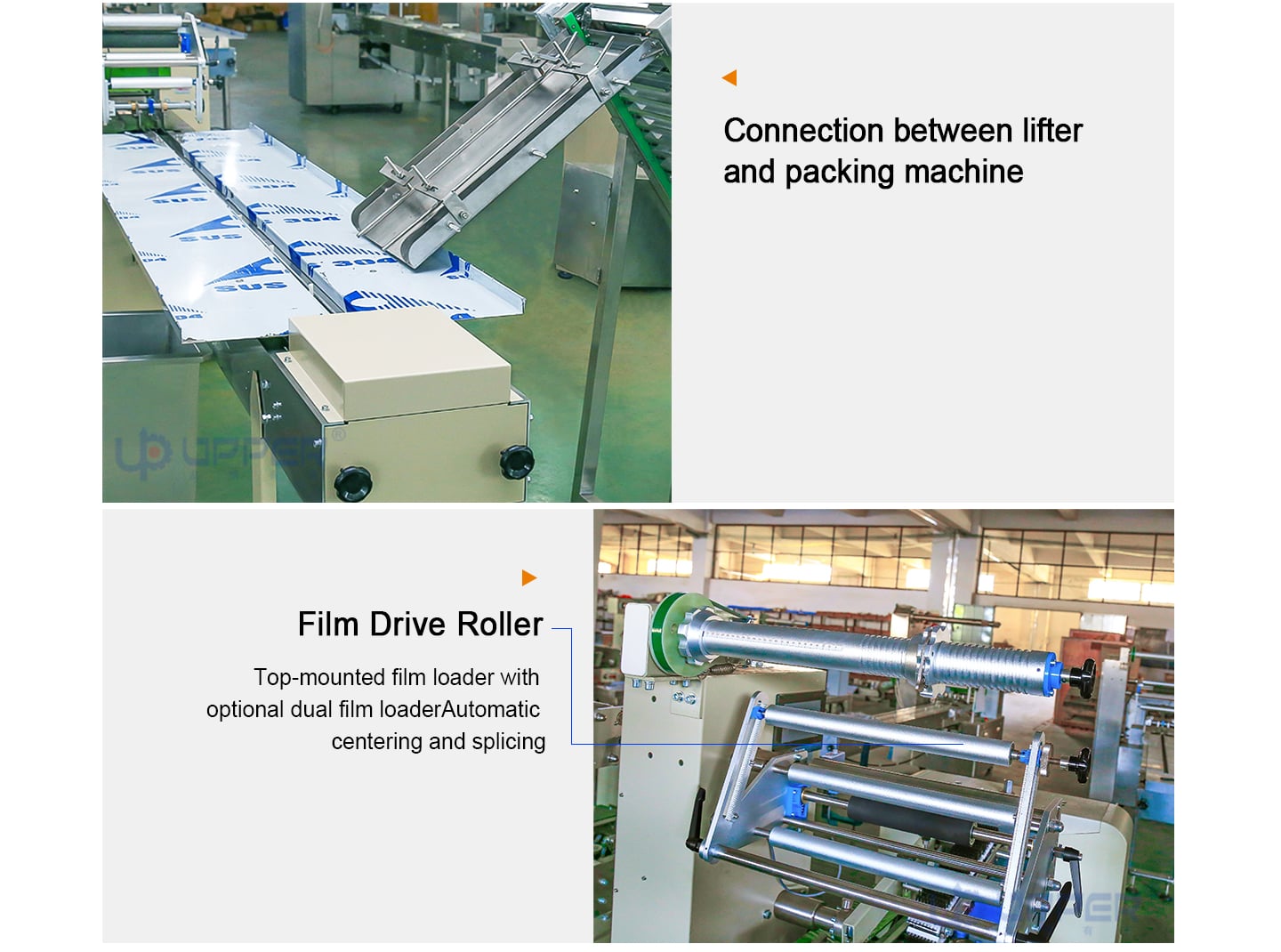

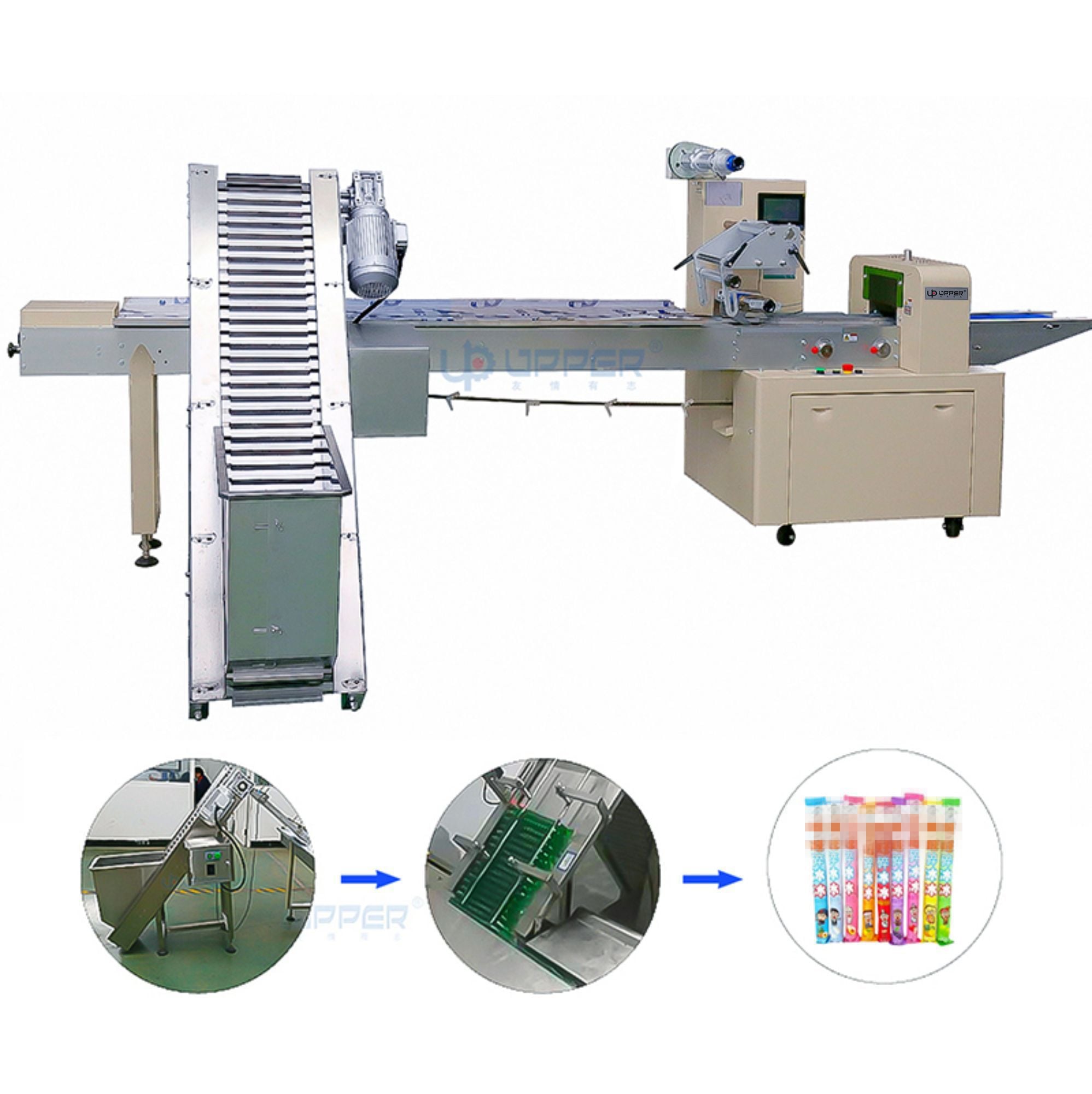

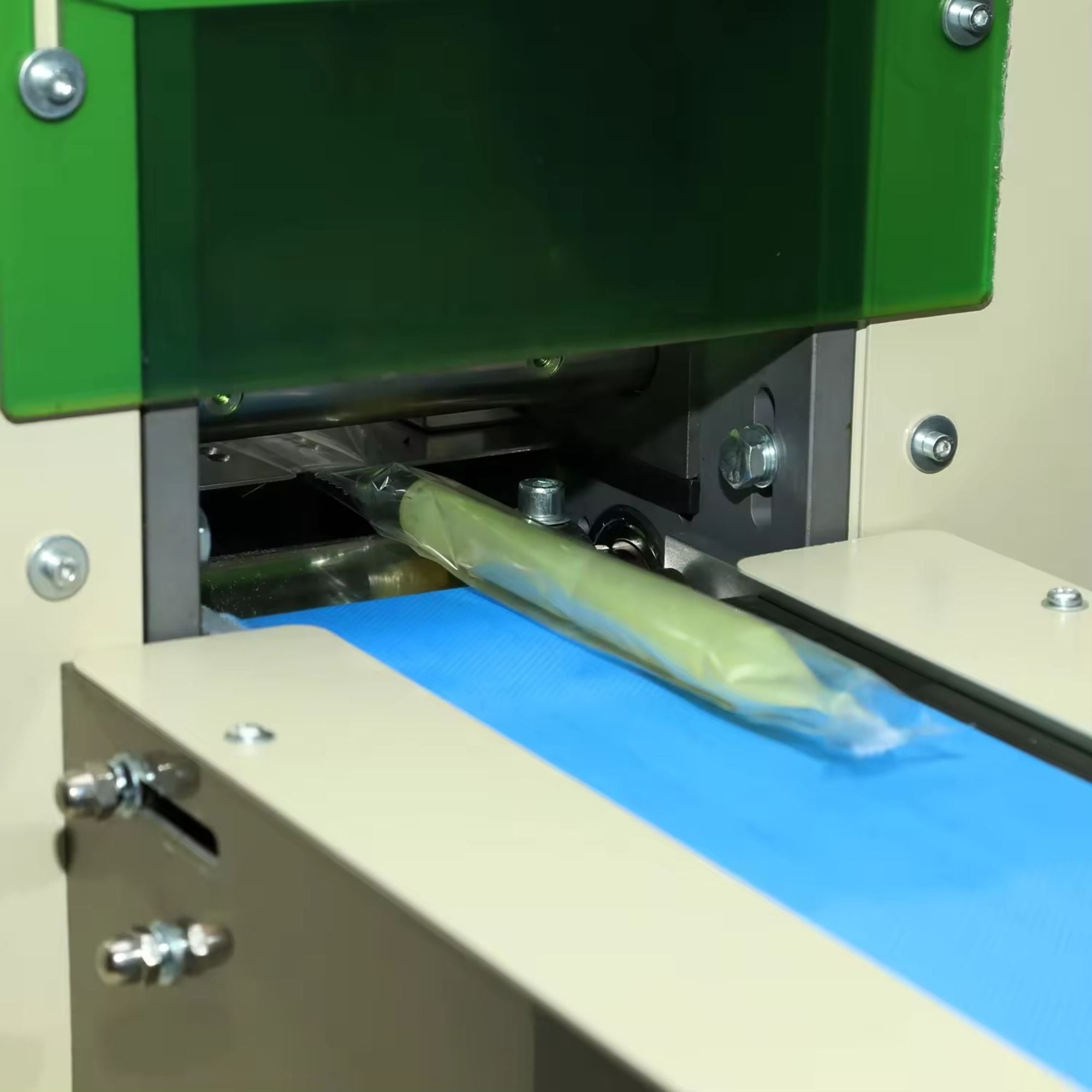

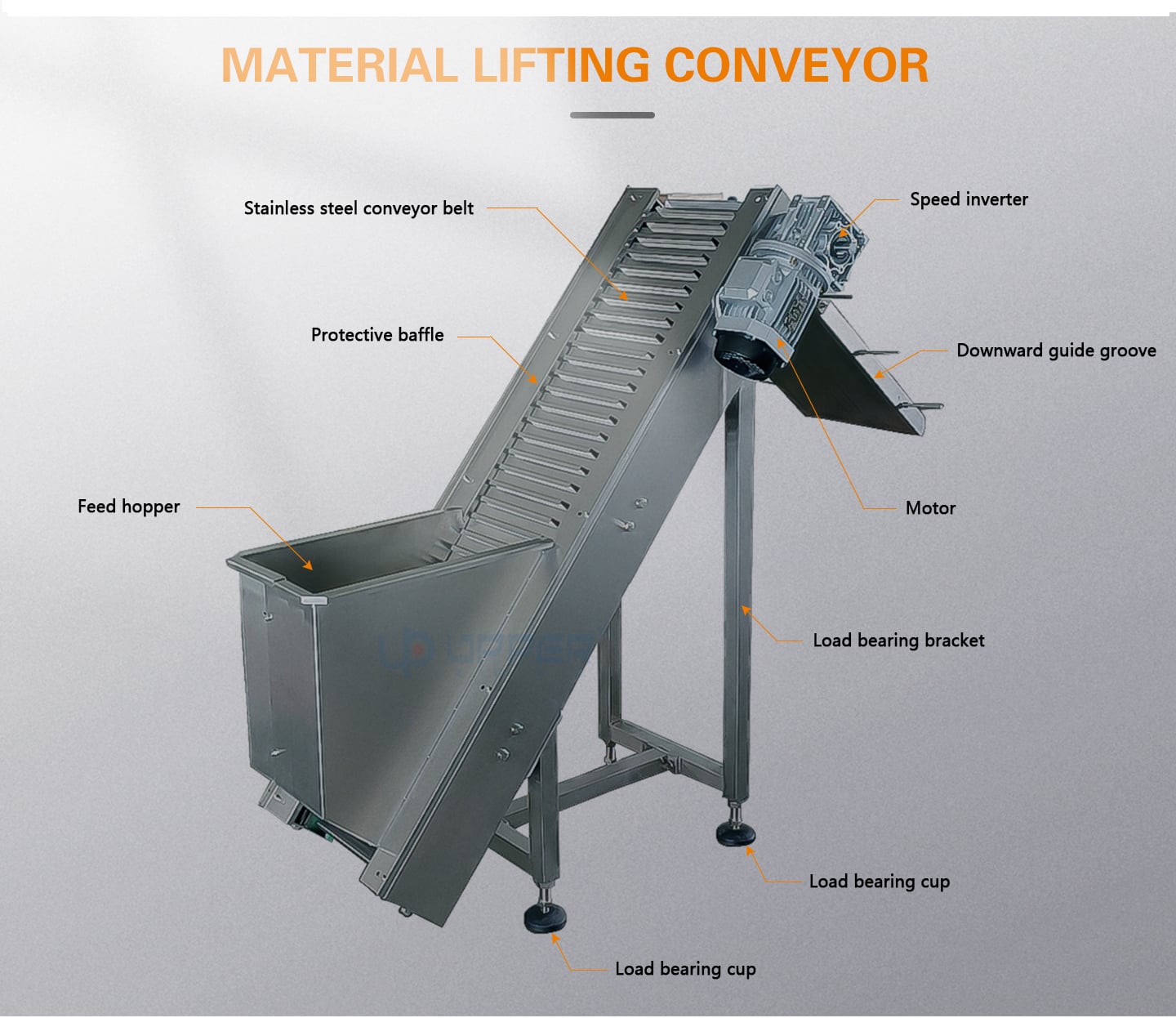

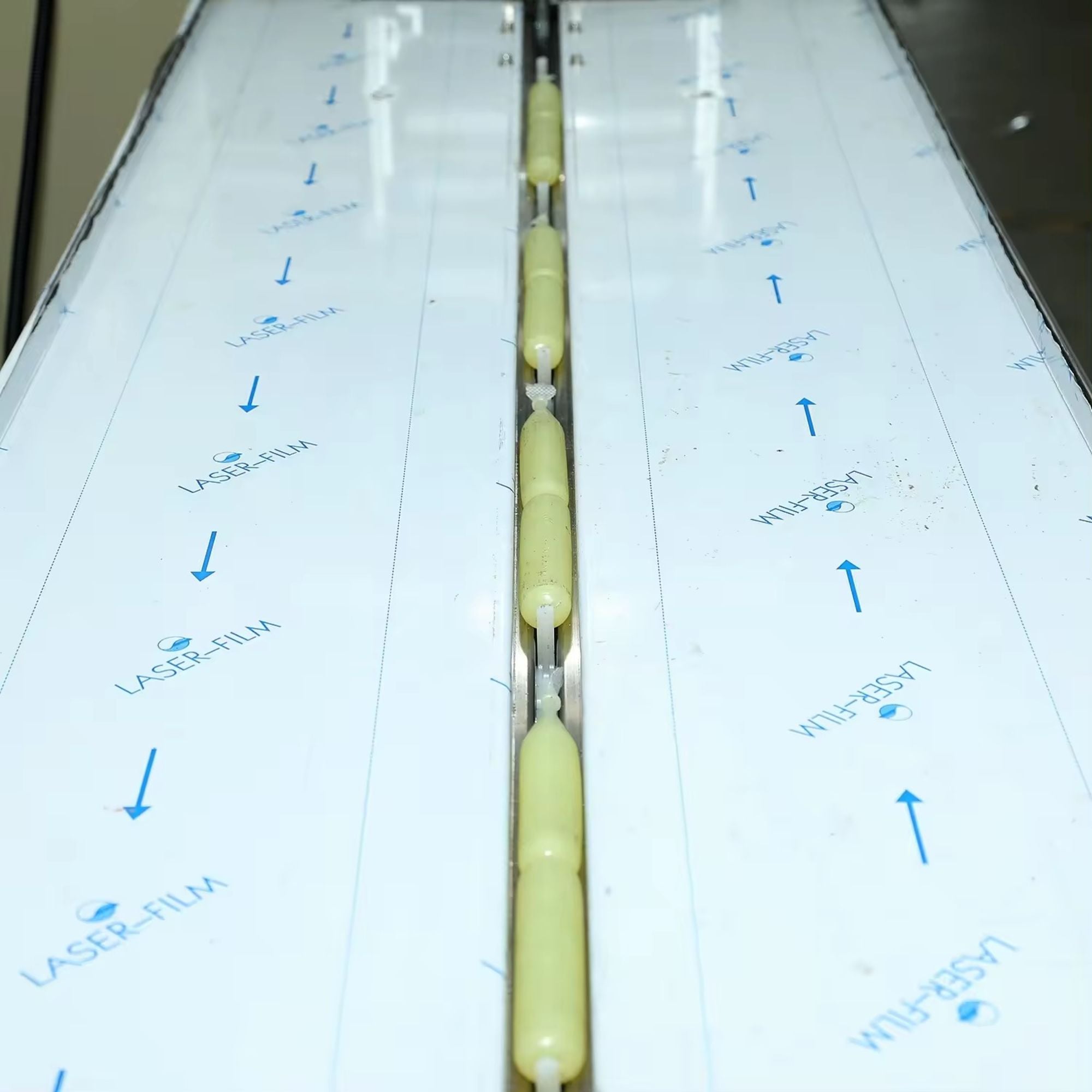

This set of equipment is mainly applicable to the packaging of lollipop-like strip materials, the process is toplace the original strip materials into the hopper through the elevator to rise and fall to theThe process is toplace the original bar material into the hopper, rise through the elevator and land on the tail frame of thepackaging machine for arrangement and transportation, and then complete the whole packaging process bypressing film/code/sealing/cutting.
High precision and high sensitivity SlCK electric eye trackingsystem, precise material position control.Thisproduct adopts stainless steel structure, humanized design,installation,disassembly,maintenance, simpleand fast.
Foshan UPPER machinery equipment co.,td is an innovative automated packaging equipment manufacturelintegrating R&D, design, manufacturing, sales and after-sales. Since its establishment more than ten yearsago, the company has attracted a group of more than 80 professionals who are persistently pursuing themechanical industry. The number of talents who have grown up with the company has reached 12, and theyhave designed and manufactured automatic packaging equipment with leading technology in China andoversea.
The company specializes in manufacturing: automatic product flow packaging line, pillow packaging machine.food packaging machine, daily chemical products packaging machine, hardware accessories packacinamachine, pouch dispenser, secondary packaging machine, automatic carton packing filing machine, bagsorting machine, customized counting colection machine, customized processing line packaging equipment
Foshan Upper Machinery Equipment Co., Ltd. has professional technical personnel, engineers, sales andafter-sales service personnel, forming a high-gquality, young and innovative team. Always adhere to the tenet of'scientific and technological innovation, quality first, steady development, sincerity and trustworthiness", andprovide customers with high-quality products and services.
Kindly Reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
Our friendly team would love to hear from you!
